1 Pc. Skoda
Brand New 1.85" (Head Dia) x MT # 3 Precision CNC Live Center for Lathes
Skoda Precision CNC Live Centers - CSN 243327-II:- The centers are intended for NC lathes. Their face parts are formed to allow easy access of the tool to the work-piece, which is an advantage with work-pieces of complex shapes
- A special ring is used to set the radial clearance of the center. It also prevents cutting lubricant from leaking into the center bearing space, and so extends the operational life of the center
- Spindle-like point extends into shank where it is supported by a needle bearing, increasing rigidity, reducing point deflection and dampening vibration

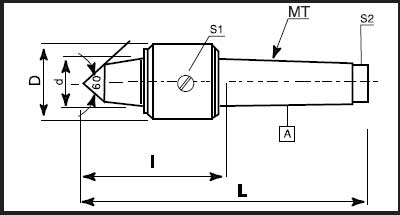

Part No. | Morse Taper No. | D (in.) | d (in) | L (in) | l (in) | Load (lb) |
---|
310-015 | 3 | 1.85 | .750 | 6.75 | 3.50 | 1550 |
