SAV 400mm x 200mm Permanent Magnetic Chuck w/ Fine Transverse Pole-Grinding/EDM

Your Price: $1,700.00

Part Number: 800011612

Availability: Ship From Vendor

Quantity

1 Pc. SAV Brand New Made in Germany 400mm (A) x 200mm (B) x 51mm (C) Model #: 243.01 Fine Transverse Pole Permanent Magnetic Chuck

Note: We are using generic picture of permanent magnetic chuck. Please review title as well as description of listing before you purchase.

Application: Suitable for chucking thin, small, medium and large workpieces. SET-TRU mounting
Design: Continuous transverse pole pitch, even holding force over the entire width. Pole divisions made of 0.5 mm brass/1.4 mm steel. Available with adaptation for zero-point work-holding system.
Technical Data:
- Rated holding force: 80 N/cm2 (140 x 70) 90 N/cm2 (175x100)
- Magnetic field height: 6 mm
- Wear layer of the pole plate: 8 mm

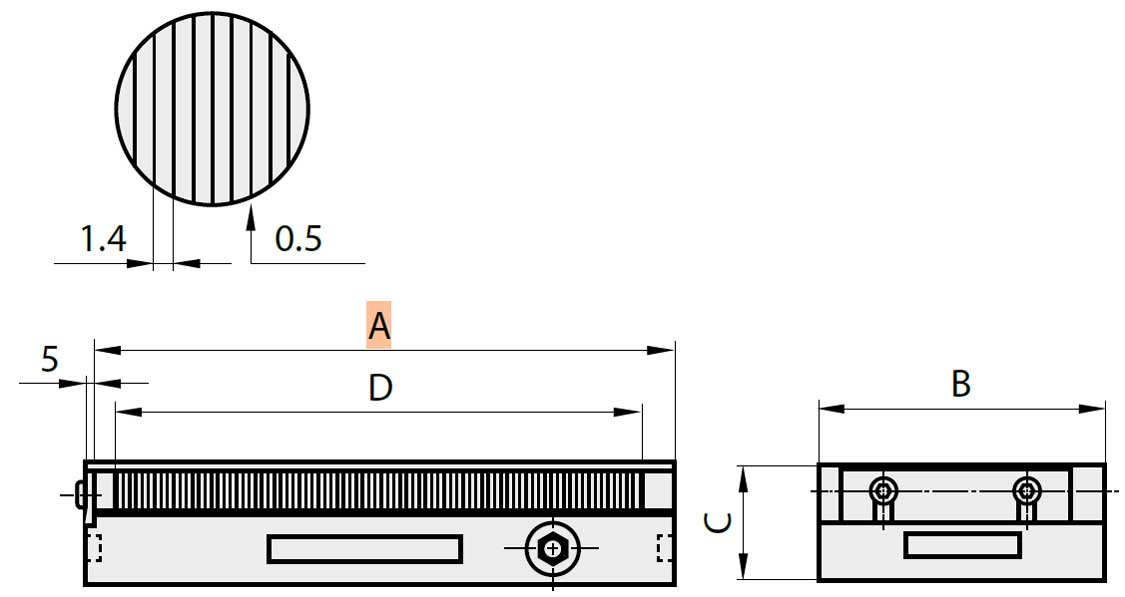

Code No.	A [mm]	B [mm]	C [mm]	D [mm]
243.01-400 x 200	400	200	51	373
