Mitutoyo 0-1" x .0001" (Grad.) Series 117 "Uni-Mike" Micrometer-Inter. Anvil
<div style="display:inline;"><img height="1" width="1" style="border-style:none;" alt="" src="//googleads.g.doubleclick.net/pagead/viewthroughconversion/983632672/?value=0&guid=ON&script=0"/></div>
Zoom in on Image(s)
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Email a friend
Mitutoyo 0-1" x .0001" (Grad.) Series 117 "Uni-Mike" Micrometer-Inter. Anvil
Your Price:
$245.00
Mitutoyo 0-1" x .0001" (Grad.) Series 117 "Uni-Mike" Micrometer-Inter. Anvil, Part #: 117-107
Part Number:
MIT 117-107
Availability:
In Stock.
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
Mitutoyo
Made in Japan Brand New

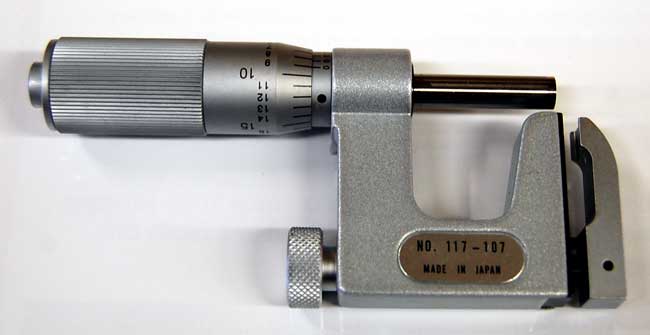

0-1" x 0.0001" (Graduation) Series 117-Interchangeable Anvil Type "Uni-Mik" Micrometer w/Friction Thimble
FEATURES: Series 103
Measures tubing thickness, shoulderedge distance, rivet head height, etc. with interchangeable anvils (flat anvil, rod anvil, V-anvil).

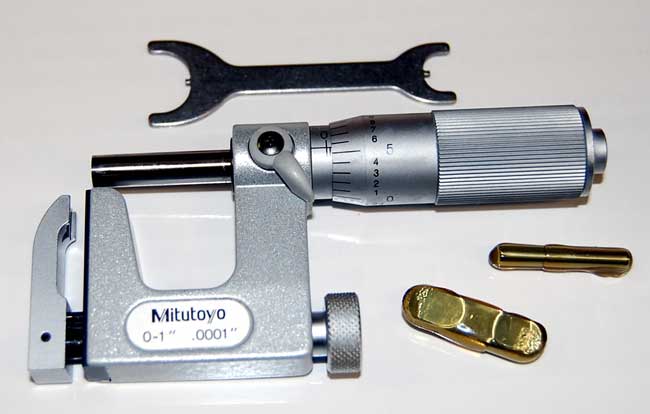

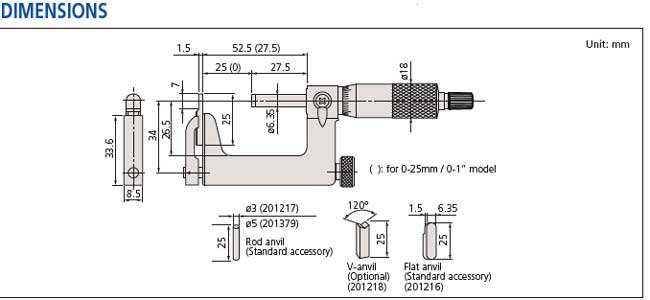

Supplied with Flat Anvil (201216) and Rod Anvil: .118”/ø3mm dia. rod anvil (201217) for 0-1”/0-25mm models, .197”/ø5mm (201379) for 1-2” / 25-50mm model.

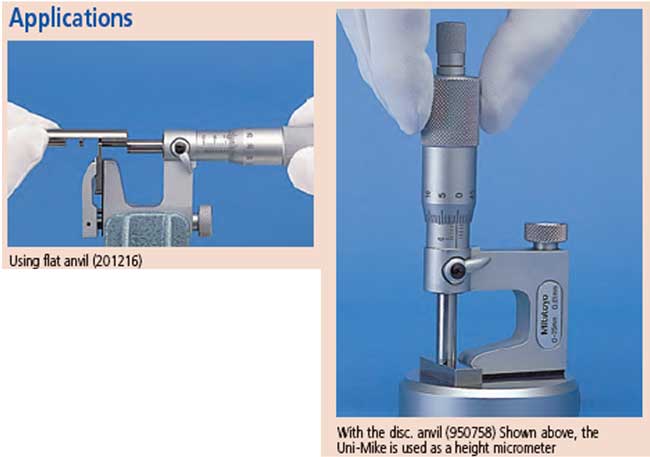

With special Disk Anvils. The Uni-Mike is used as a height micrometer. The disks have a lapped, mirror surface.
With a standard bar except 0 -1” and 0-25mm model

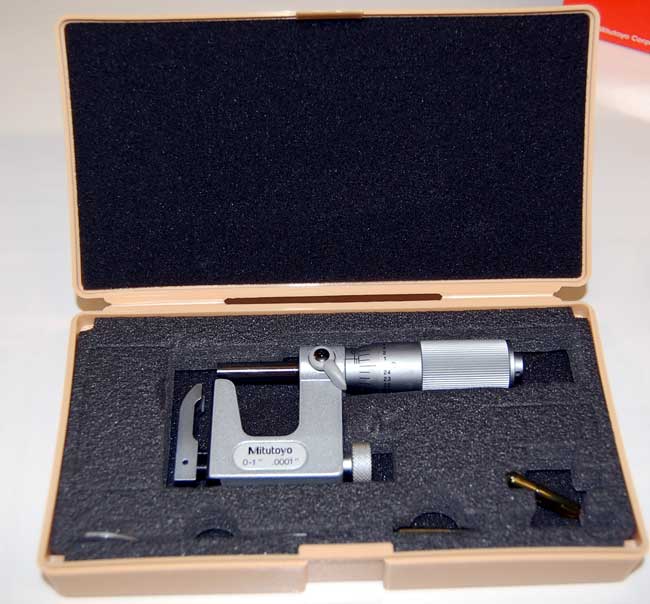

Supplied in fitted plastic case.
Technical Data
Accuracy: +/- .0002", .0001" reading is obtained with vernier
Graduaction: .0001" or 0.01mm
Spindle face: Carbide tipped
Range
Graduation
Accuracy
Mass (g)
0-1"
.0001"
+/- .0002"
255
