Mitutoyo 0-1" x .00005" (Res) Series 293 Coolant Proof IP65 Digimatic Micrometer
<div style="display:inline;"><img height="1" width="1" style="border-style:none;" alt="" src="//googleads.g.doubleclick.net/pagead/viewthroughconversion/983632672/?value=0&guid=ON&script=0"/></div>
Zoom in on Image(s)
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Email a friend

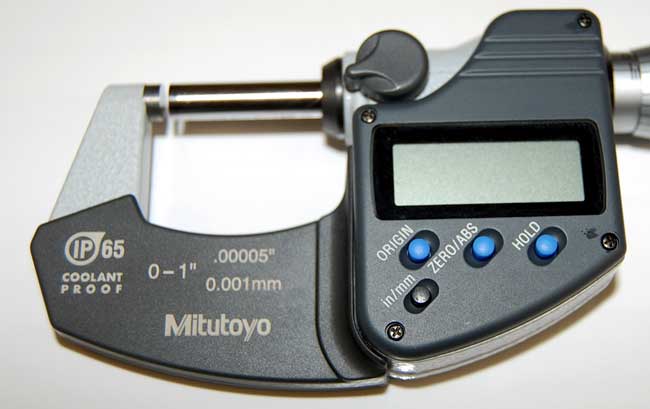

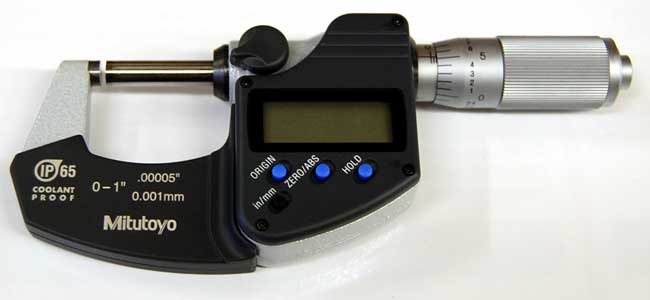

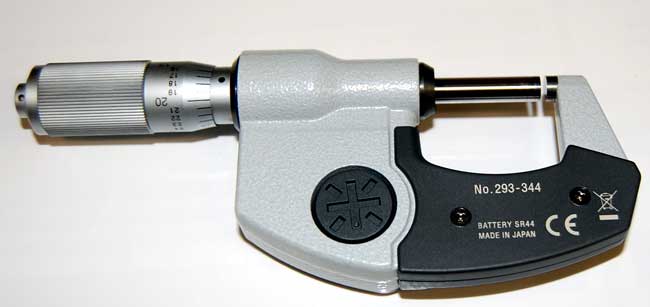

Mitutoyo 0-1" x .00005" (Res) Series 293 Coolant Proof IP65 Digimatic Micrometer
Your Price:
$260.00
Mitutoyo 0-1" x .00005" (Res) Series 293 Coolant Proof IP65 Digimatic Micrometer, Order # 293-344-30
Part Number:
MIT 293-344-30
Availability:
In Stock.
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
Mitutoyo
Made in Japan Brand New
0 to 1" x 0.0005" (Resolution) Series 293 Coolant Proof Digimatic Micrometer w/Dust /Water Protection Confirming to IP65 Level, comes with certification of inspection
FEATURES: Series 293
IP65 protection level, enabling use in environments exposed to cutting oil, etc*. *Anti-corrosion treatment is required after use.
Measurement data output function is available with a water-resistant connection cable.
Auto power ON/OFF function.

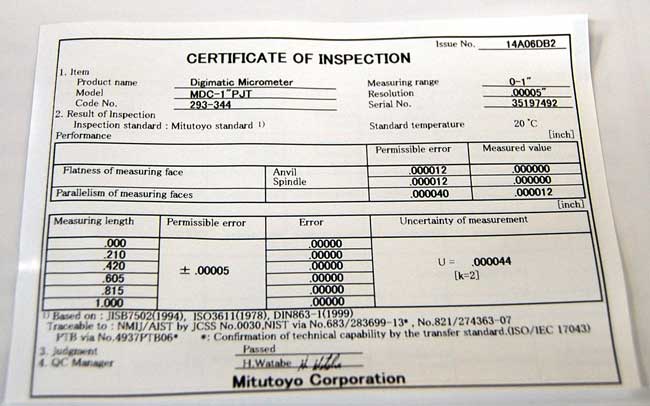

Certificate of inspection* is included. (2” /50mm or less range models) *It is not the type used to obtain calibration certificates.
With a standard bar except for 0-1"/0-25mm model.

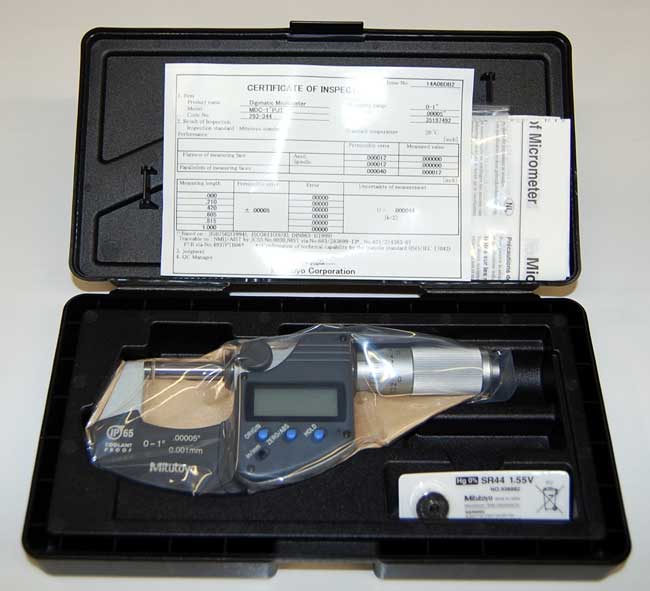

Supplied in fitted case. Plastic case up to 6"/150mm, Wooden box over 6"/150mm
Technical Data
Accuracy: +/- .00005".
Resolution: .00005"/0.001mm or 0.001mm
Resolution: .00005"/0.001mm or 0.001mm (up to 4” models)
.0001” / 0.001mm (over 4” models)
Flatness: .000012”/0.3µm
Parallelism: .00004”/1µm for models up to 2”/50mm
.00008”/2µm for models up to 4”/100mm
.00012”/3µm for models up to 7”/175mm
.00016”/4µm for models up to 11”/275mm
.0002”/5µm for models over 12”/300mm
Measuring faces: Carbide tipped
Display: LCD
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 1.2 years under normal use (8 months: over 4”/100mm models)
Dust/Water protection level: IP65
Function
Origin-set, Zero / ABS, Hold, Auto power on/off,
Data output (output models),
inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error
Range
Resolution
Accuracy
0-1" / 0-25.4mm
.00005" /0.001mm
+/- .00005"
