Mitee-Bite Products LLC
Made in USA Brand New 12.75" x 13.0" x 1.375" VM300 VacMagic Complete Vacuum System-The Simplest & Most Versatile Vacuum System on Market
System Includes:- 2 Pcs. Mitee-Bite VM300 14.3"x 12.40" x .75" Blank Pallet, Part # 45130
- Mitee-Bite VM300 12.75" x 13.0" x 1.375" Base Unit (Receiver) w/All Hardware, Part # 45175
- Mitee-Bite VM300 14.3" x 12.40" x.625" Vacuum Pallet, Part # 45150
In a relatively short amount of time the VM300 has established itself as the vacuum system to which all others are measured. Capabilities include traditional vacuum applications using our standard grid plate and custom vacuum applications (ie: machining blank pallet to suit specific part geometry) and the ability to perform as a rock solid pallet changer.
Features:- Simple design keeps cost low
- Productivity maximized load pallets while machining
- Quick-change swap pallets in 30 seconds or less with precise repeatability
- Easy to install and set-up
- Vacuum pallets with M6 threaded holes and textured finish to increase friction
- Reliable and easy to use virtually maintenance free
- Flexible pallet design limited only by your imagination!
- No pumps - uses standard shop air
- Purchase includes a pack of our original Fixture Clamps and Sliding Stops

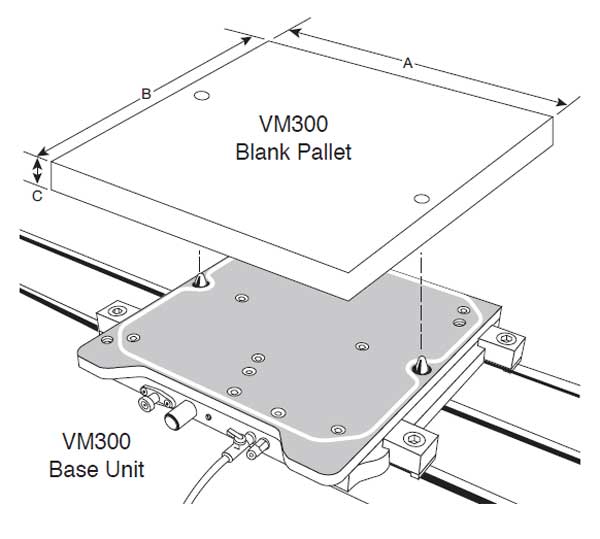

Part Number | Description | A-Length Inch (Metric) | B-Width Inch (Metric) | C-Height Inch (Metric) |
---|
45130 | VM300 Blank Plate | 14.3" (360mm) | 12.4" (315mm) | .75" (19mm) |
45175 | VM300 Base Unit with all hardware | 12.75" (323mm) | 13.0" (330mm) | 1.375" (35mm) |
45150 | VM300 Vacuum Plate | 14.3" (360mm) | 12.4" (315mm) | .625" (16mm) |
These generic images shows how this Vacuum System can be use for application. You will only get described one Complete Vacuum System nothing else.
