Mitee-Bite VM100 Vacmagic 12.375" x 5.5" x 1.0" Complete Vacuum System

Your Price: $2,250.00
In Stock.
Part Number:MB-45300
Mitee-Bite Products LLC Made in USA Brand New 12.375" x 5.5" x 1.0" VM100 VacMagic Complete Vacuum System-The Simplest & Most Versatile Vacuum System on Market
    System Includes:
  • Mitee-Bite VM100 12.5" x 5.875" x 1.0" Blank Pallet, Part # 45325
  • Mitee-Bite VM100 12.375" x 5.5" x 1.0" Base Unit w/All Hardware, Part # 45375

The VM100 was primarily designed for grinding non-ferrous material on a magnetic chuck. During the early stages of R & D it was discovered the VM100 could be much more. Clamp the VM100 in vise to reduce set-up time, use as a pallet changer or mount to a grid plate or T-slot table. The VM100 uses the same patented method as the VM300 to produce a vacuum strong enough for industrial applications but still operates on 70-100 PSI shop air! No need for vacuum pumps and coolant traps. We include everything necessary to get your VM100 running within minutes of opening the box.



    Features:
  • Make your own vacuum fixtures - we can help with the design and produce the fixture for your custom application
  • Will accept both blank pallets, the standard 45130 and the larger 45135, as well as the standard vacuum pallet, increasing your vacuum platform to over 14"x 12" (360mm x315mm).
  • Remove 12mm pins when grinding/machining thin material, use set screws to locate and aid in holding force

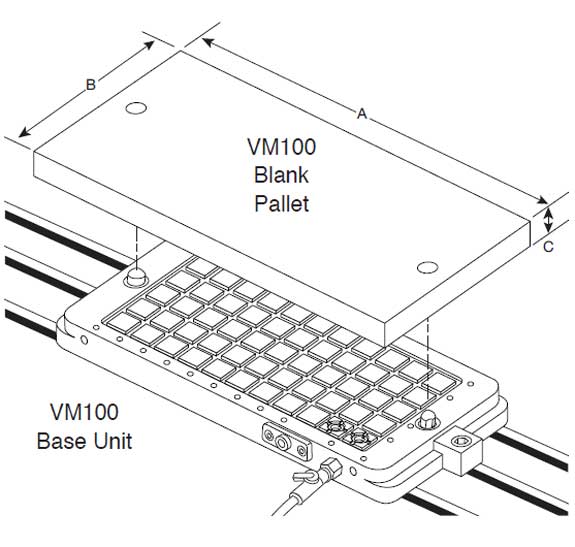

Part
Number
DescriptionA-Length
Inch (Metric)
B-Width
Inch (Metric)
C-Height
Inch (Metric)
45325VM100 Blank Plate12.5" (318mm)5.875" (150mm)1.0" (25mm)
45375VM100 Base Unit with all hardware12.375" (315mm)5.5" (140mm)1.0" (25mm)

These generic images shows how this Vacuum System can be use for application. You will only get described one Complete Vacuum System nothing else.
