1 Pc. Mitee-Bite Products LLC
Made in USA Brand New Model No. DK2-VTI-B Special Model OK-Vise Workholding Clamp. The hard pivoting ball is ideal for clamping castings and unusual shaped pieces. OK-VISE® low-profile clamp with a self adjusting steel ball is helpful when clamping castings and workpieces of an irregular shape.
THREE-DIMENSIONAL MACHINING
Due to a low-profile design of OK-VISE® Clamps, it is possible to execute flexible three-directional machining of workpieces with one fastening. This ability to machine a workpiece in three planes means improved accuracy.

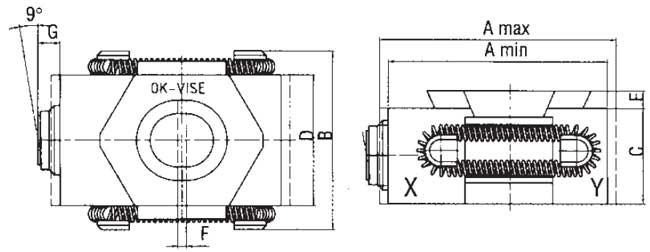

| Model | A
Min. | A
Optimum | A
Max. | B | C | D | E | F | G | Mouting
Screw
(included) | Max.
Torque
(Ft/Lbs) | Pressing
Force of
Jaws (Lbs) | Hardness
of Jaws
HRC |
|---|
| DK2-VTI-B | 1.85 | 1.97 | 2.12 | 1.61 | .87 | 1.18 | .16 | .080 | .20 | 1/2-13 x 1-1/4 | 110 | 12,000 | 48-52 |
These generic images shows how these OK-Vise Clamp can be use for application. You will only get described one clamp nothing else.
