99 Techniks CAT50 CNC Mill Tooling Kit-Haas,Mori-Seiki-ER Chucks,Collets,Studs
Your Price:
$5,725.00
Part Number:
Tech-CAT50-Jumbo-KIT-3
Availability:
In Stock.
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
99 Pcs. Techniks
Brand New
CAT 50 25,000 RPM Balanced CNC Tooling Package for CNC Mill (Various Make & Models), Includes 11 Pcs. of ER 32, 5 Pcs. of ER 20 Collet Chucks, 1 Set of ER 20 x 12 Pcs. 5/32" to 1/2" x 32nds, ER 32 x 18 Pcs. 7/32" to 3/4" x 32nds, ER 32 x 18 Pcs. 3mm to 20mm x 1mm Collet Set, 1 Pc. of 1/4", 3/8", 1/2", 5/8" , 3/4", 1", 1-1/4" End Mill Holder, 25 Pcs.CAT 50 Pull Studs (45, 60 or 90 Degree), 2 Pcs. of ER32 Wrenches & 1 Pc. of ER 20 Wrench. Enjoy Huge Saving On Techniks Certified Tooling!!!!

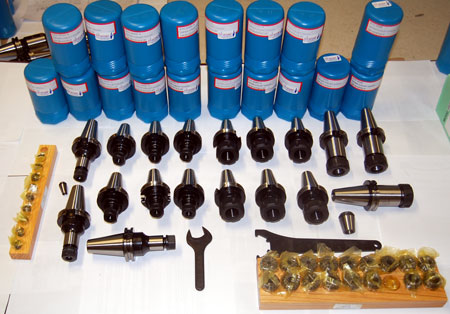

Kit Includes:
5 Pcs. Techniks
Brand New
CAT 50 ER 20 x 4.00" 25,000 RPM Balanced Collet Chucks w/Hex Nut, Part# 22291
1 Set of Techniks
Brand New
ER 20 5/32" to 1/2" x 32nds .0002" T.I.R Collet Set, Part# 04210IS
1 Pc. Techniks
Brand New
ER20-A Hex Collet Chuck Wrench, Part# 04610
11 Pcs. Techniks
Brand New
CAT 50 ER 32 x 4.00" 25,000 RPM Balanced Collet Chucks, Part# 22311
1 Set of Techniks
Brand New

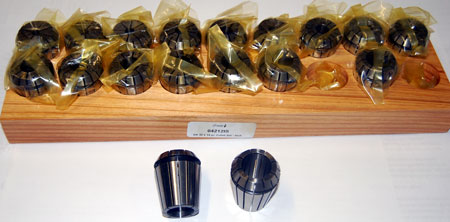

ER 32 7/32" to 3/4" x 32nds .0002" T.I.R Collet Set, Part# 04212IS
1 Set of Techniks
Brand New
ER 32 3mm to 20mm x 1mm .0002" T.I.R Collet Set, Part# 04205MS
2 Pcs. Techniks
Brand New
ER32-E Spanner Collet Chuck Wrenches, Part# 04616
1 Pc. Techniks
Brand New
CAT 50 1/4" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22931
1 Pc. Techniks
Brand New
CAT 50 3/8" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22935
1 Pc. Techniks
Brand New
CAT 50 1/2" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22937
1 Pc. Techniks
Brand New
CAT 50 5/8" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22939
1 Pc. Techniks
Brand New
CAT 50 3/4" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22941
1 Pc. Techniks
Brand New
CAT 50 1" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22945
1 Pc. Techniks
Brand New
CAT 50 1-1/4" x 4.60" 10,000 RPM Balanced End Mill Holder, Part# 22947
25 Pcs. Techniks
Brand New
CAT 50 Retention Knobs (Standard 45, 60 ro 90 Degree to fit your CNC Mill not special), Part#
Qty.
Part No.
Description
11
22311
CAT 50 x ER32-4.00
1
04212IS
ER 32 x 18 pc. collet set - inch
1
04205MS
ER 32 x 18 pc. collet set - metric
5
22291
CAT 50 x ER20-4.00
1
04210IS
ER 20 x 12 pc. collet set - inch
1
22931
CAT 50 x SLN 1/4" x 4"
1
22935
CAT 50 x SLN 3/8" x 4"
1
22937
CAT 50 x SLN 1/2" x 4"
1
22939
CAT 50 x SLN 5/8" x 4"
1
22941
CAT 50 x SLN 3/4" x 4.0"
1
22945
CAT 50 x SLN 1" x 4"
1
22947
CAT 50 x SLN 1-1/4" x 4.6"
25
-
CAT 50 (45,60 or 90 Degree) Pull Stud/Retention Knob
2
04616
ER32 - E Wrench
1
04610
ER20 - A Wrench
CAT 50 ER Collet Chuck
Balanced to 25,000 RPM @ G2.5
T.I.R 0.0001" measured from taper to collet pocket
Techniks Lab Certified each holder comes with a certificated verifying accuracy and balance
ER Collet
0.0002" maximum run-out
Each collet hand inspected

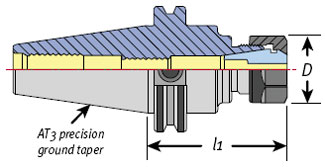

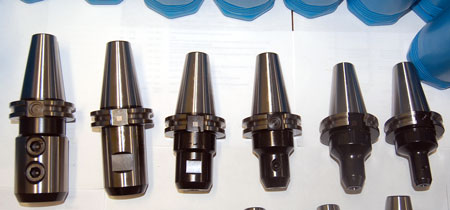

CAT 50 End Mill Holder
High precision bore (H5) is best in industry
Balanced to 10,000 RPM
Taper ground to AT3 for maximum spindle contact

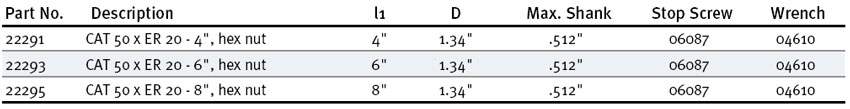

CAT 50 ER Collet Chucks
Part#
Description
l1
D
Max. Shank
Stop Screw
Wrench
22291
CAT 50 x ER 20 - 4.00", hex nut
4.00"
1.34"
.512"
06087
04610
22311
CAT 50 x ER 32 - 4.00", slotted nut
4.00"
1.97"
.788"
06089
04616
Note: Please call me @ 401-490-1141 for any questions you may have. Quantity discount available.
