79 Pc.Techniks CAT 50 Tooling Kit for Haas,Fadal CNC Mill-ER Chuck,Collet,Holder

On sale: $2,995.00
In Stock.
Free Shipping.
Part Number:Tech-CAT50-Jumbo-KIT-5
79 Pcs. Techniks Brand New CAT 50 25,000 RPM Balanced CNC Tooling Package for CNC Mill (Various Make & Models), Includes 5 Pcs. of ER 32 Collet Chucks, 5 Pcs. of ER 16 Collet Chucks, 1 Set of ER 16 x 10 Pcs. 3/32" to 3/8" x 32nds & ER 32 18 Pcs. 7/32" to 3/4" x 32nds Collet Set, 1 Pc. of 1/4", 3/8", 1/2", 5/8" , 3/4", 1" End Mill Holder, 1 Pc. of 3/4" Shell Mill Arbor, 2" x 90 Deg. Indexable Face Mill, 10 Pcs. APKT 1604-PDTR, LT 30 Carbide Milling Inserts, 20 Pcs.CAT 50 Pull Studs (45, 60 or 90 Degree), 200TH Torque Wrench & 1 Pc. of ER 16 & ER 32 Collet Key
    Kit Includes:
  • 5 Pcs. Techniks Brand New CAT 50 ER 16 x 4.00" 25,000 RPM Balanced Collet Chucks w/Hex Nut, Part# 22281
  • 1 Set of Techniks Brand New ER 16 3/32" to 3/8" x 32nds .0002" T.I.R Collet Sets, Part# 04209IS
  • 1 Pc. Techniks Brand New ER16-A Hex Collet Chuck Wrench Key, Part# 04601-16
  • 5 Pcs. Techniks Brand New CAT 50 ER 32 x 4.00" 25,000 RPM Balanced Collet Chucks, Part# 22311
  • 1 Set of Techniks Brand New ER 32 7/32" to 3/4" x 32nds .0002" T.I.R Collet Sets, Part# 04212IS
  • 1 Pc. Techniks Brand New ER32-E Spanner Collet Chuck Wrench Key, Part# 04604-32
  • 1 Pc. Techniks Brand New 200 TH 30-150 ft/lbs Adjustable Torque Wrench, Part# 200TH
  • 1 Pc. Techniks Brand New CAT 50 1/4" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22931
  • 1 Pc. Techniks Brand New CAT 50 3/8" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22935
  • 1 Pc. Techniks Brand New CAT 50 1/2" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22937
  • 1 Pc. Techniks Brand New CAT 50 5/8" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22939
  • 1 Pc. Techniks Brand New CAT 50 3/4" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22941
  • 1 Pc. Techniks Brand New CAT 50 1" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22945
  • 1 Pc. Techniks Brand New CAT 50 3/4" x 1.50" Shell Mill Holder, Part# 22711
  • 1 Pc. Techniks Brand New 2" x 3/4" APKT 16 90 Deg. Indexable Coolant Face Mill Cutter, Part# 2621244
  • 10 Pcs. Lamina Technology Brand New APKT 1604PDTR, LT 30 Milling Inserts, Part# 1506075
  • 20 Pcs. Techniks Brand New CAT 50 Retention Knobs (Standard 45, 60 or 90 Degree to fit your CNC Mill not special), Part#
Qty.Part No.Description
522311CAT 50 x ER32-4.00
104212ISER 32 x 18 pc. collet set - inch
522281CAT 50 x ER16-4.00
104209ISER 16 x 10 pc. collet set - inch
1200TH200TH Adjustable Torque Wrench
122931CAT 50 x SLN 1/4" x 4"
122935CAT 50 x SLN 3/8" x 4"
122937CAT 50 x SLN 1/2" x 4"
122939CAT 50 x SLN 5/8" x 4"
122941CAT 50 x SLN 3/4" x 4"
122945CAT 50 x SLN 1" x 4"
20-CAT 50 (45,60 or 90 Degree) Pull Stud/Retention Knob
104604-32ER32 - E Collet Key Adapter
104601-16ER16 - A Hex Collet Key Adapter
122721CAT 50 3/4' Shell Mill Holder
126212442" 90 Deg. Face Mill Cutter
10 /1 Box1506075APKT 1604PDTR, LT30 Inserts
    CAT 40 ER Collet Chuck
  • Balanced to 25,000 RPM @ G2.5
  • T.I.R 0.0001" measured from taper to collet pocket
  • Techniks Lab Certified each holder comes with a certificated verifying accuracy and balance
    ER Collet
  • 0.0002" maximum run-out
  • Each collet hand inspected
    CAT 50 End Mill Holder
  • High precision bore (H5) is best in industry
  • Balanced to 10,000 RPM
  • Taper ground to AT3 for maximum spindle contact
CAT 40 ER Collet Chucks
Part#Descriptionl1DMax. ShankStop ScrewWrench
22281CAT 50 x ER 16 - 4.00", hex nut4.00"1.08".406"0608304609
22311CAT 40 x ER 32 - 4.00", slotted nut4.00"1.97".788"0608904616
Part
Number
DescriptionInsertDdZd1L
2621244FM 2.00C-.750-5-16AP--16042.000.7551.691.57



    Indexable Face Mill Product Information
  • Comes in 2", 3", 4", 5" Diameters
  • Takes Insert APKT1604 for most materials and APGT1604 and APEX1604PDFRFO1-5005-HP for aluminum (2 corners)
  • Made of H13
  • Coolant Thru Capability
  • Can be Used in All Materials
  • To run coolant thru, face mills require Coolant Arbor Screws.
    Features & Benefits
  • H6 bore tolerance - 38% more accurate than standard face mills
  • Less vibration
  • Longer insert life



Grade: LT 30, A sub-micro grain substrate with a very thick high-pulse PVD coating with better adhesion than normal coatings. It can be run in all materials including aluminum, The Lamina Multi-Mat(TM) LT 30 Grade for Milling can machine most materials with ONLY ONE GRADE (Steel, Stainless, Cast Iron, High Temp. Alloys, Hardened Steel, Aluminum & Non ferrous Alloys)

Lamina Technologies High-Performance


3 x the Thickness of Conventional PVD!

    Features
  • Ultra-thick, patented PVD coating dramatically increases tool life
  • Very low flank and plastic deformation minimize or eliminate offsets
  • Advanced high-performance grade offers ultimate versatility
  • Exceptional performance in High Temp Alloys
  • Breakthroughs in honing and coating technologies
  • Thickest PVD coating in the industry
  • Freedom from the cycle of ""new grade"" announcements
  • Facing, longitudinal turning, internal and external operations
  • Fits standard cutters available in all markets
  • Excellent toughness & wear resistance

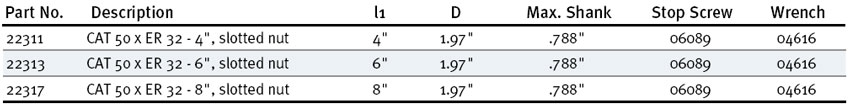

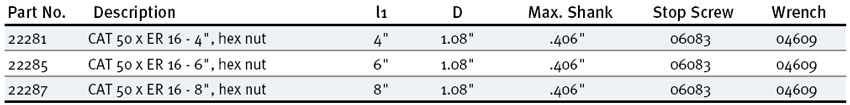

Other Available CAT 50 ER Collet Chucks
