High-Performance CNC Mill Tooling
CNC Tooling Kits
79 Pc.Techniks CAT 40 Tooling Kit for Haas,Fadal CNC Mill-ER Chuck,Collet,Holder
<div style="display:inline;"><img height="1" width="1" style="border-style:none;" alt="" src="//googleads.g.doubleclick.net/pagead/viewthroughconversion/983632672/?value=0&guid=ON&script=0"/></div>
Zoom in on Image(s)
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Email a friend
79 Pc.Techniks CAT 40 Tooling Kit for Haas,Fadal CNC Mill-ER Chuck,Collet,Holder
On sale:
$5,215.00
Original price
$4,125.00
79 Pc.Techniks CAT 40 Tooling Kit for Haas,Fadal CNC Mill-ER Chuck,Collet,Holder
Part Number:
Tech-CAT40-Jumbo-KIT-5
Availability:
In Stock.
Free Shipping.
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
79 Pcs. Techniks
Brand New
CAT 40 25,000 RPM Balanced CNC Tooling Package for CNC Mill (Various Make & Models), Includes 5 Pcs. of ER 32 Collet Chucks, 5 Pcs. of ER 16 Collet Chucks, 1 Set of ER 16 x 10 Pcs. 3/32" to 3/8" x 32nds & ER 32 18 Pcs. 7/32" to 3/4" x 32nds Collet Set, 1 Pc. of 1/4", 3/8", 1/2", 5/8" , 3/4", 1" End Mill Holder, 1 Pc. of 3/4" Shell Mill Arbor, 2" x 90 Deg. Indexable Face Mill, 10 Pcs. APKT 160408PDSR Carbide Milling Inserts, 20 Pcs.CAT 40 Pull Studs (45, 60 or 90 Degree), 200TH Torque Wrench & 1 Pc. of ER 16 & ER 32 Collet Key
Kit Includes:
5 Pcs. Techniks
Brand New
CAT 40 ER 16 x 2.76" 25,000 RPM Balanced Collet Chucks w/Hex Nut, Part# 22225
1 Set of Techniks
Brand New
ER 16 3/32" to 3/8" x 32nds .0002" T.I.R Collet Sets, Part# 04209IS
1 Pc. Techniks
Brand New
ER16-A Hex Collet Chuck Wrench Key, Part# 04601-16
5 Pcs. Techniks
Brand New
CAT 40 ER 32 x 2.76" 25,000 RPM Balanced Collet Chucks, Part# 22253
1 Set of Techniks
Brand New
ER 32 7/32" to 3/4" x 32nds .0002" T.I.R Collet Sets, Part# 04212IS
1 Pc. Techniks
Brand New
ER32-E Spanner Collet Chuck Wrench Key, Part# 04604-32
1 Pc. Techniks
Brand New
200 TH 30-150 ft/lbs Adjustable Torque Wrench, Part# 200TH
1 Pc. Techniks
Brand New
CAT 40 1/4" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22911
1 Pc. Techniks
Brand New
CAT 40 3/8" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22915
1 Pc. Techniks
Brand New
CAT 40 1/2" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22917
1 Pc. Techniks
Brand New
CAT 40 5/8" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22919
1 Pc. Techniks
Brand New
CAT 40 3/4" x 3.50" 10,000 RPM Balanced End Mill Holder, Part# 22921
1 Pc. Techniks
Brand New
CAT 40 1" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22925
1 Pc. Techniks
Brand New
CAT 40 3/4" x 1.37" Shell Mill Holder, Part# 22711
1 Pc. Techniks
Brand New
2" x 3/4" APKT 16 90 Deg. Indexable Coolant Face Mill Cutter, Part# 2621244
10 Pcs.
Brand New
APKT 160408PDSR Steel Grade Milling Inserts
20 Pcs. Techniks
Brand New
CAT 40 Retention Knobs (Standard 45, 60 ro 90 Degree to fit your CNC Mill not special), Part#
Qty.
Part No.
Description
5
22253
CAT 40 x ER32-2.76
1
04212IS
ER 32 x 18 pc. collet set - inch
5
22225
CAT 40 x ER16-2.76
1
04209IS
ER 16 x 10 pc. collet set - inch
1
200TH
200TH Adjustable Torque Wrench
1
22911
CAT 40 x SLN 1/4" x 3"
1
22915
CAT 40 x SLN 3/8" x 3"
1
22917
CAT 40 x SLN 1/2" x 3"
1
22919
CAT 40 x SLN 5/8" x 3"
1
22921
CAT 40 x SLN 3/4" x 3.5"
1
22925
CAT 40 x SLN 1" x 4"
20
-
CAT40 (45,60 or 90 Degree) Pull Stud/Retention Knob
1
04604-32
ER32 - E Collet Key Adapter
1
04601-16
ER16 - A Hex Collet Key Adapter
1
22711
CAT 40 3/4' Shell Mill Holder
1
2621244
2" 90 Deg. Face Mill Cutter
10 /1 Box
-
APKT 1604PDSR, Steel Grade Inserts
CAT 40 ER Collet Chuck
Balanced to 25,000 RPM @ G2.5
T.I.R 0.0001" measured from taper to collet pocket
Techniks Lab Certified each holder comes with a certificated verifying accuracy and balance
ER Collet
0.0002" maximum run-out
Each collet hand inspected
CAT 40 End Mill Holder
High precision bore (H5) is best in industry
Balanced to 10,000 RPM
Taper ground to AT3 for maximum spindle contact
CAT 40 ER Collet Chucks
Part#
Description
l1
D
Max. Shank
Stop Screw
Wrench
22225
CAT 40 x ER 16 - 2.76", hex nut
2.76"
1.08"
.406"
06083
04609
22253
CAT 40 x ER 32 - 2.76", slotted nut
2.76"
1.97"
.788"
06089
04616
Part
Number
Description
Insert
D
d
Z
d1
L
2621244
FM 2.00C-.750-5-16
AP--1604
2.00
0.75
5
1.69
1.57
Indexable Face Mill Product Information
Comes in 2", 3", 4", 5" Diameters
Takes Insert APKT1604 for most materials and APGT1604 and APEX1604PDFRFO1-5005-HP for aluminum (2 corners)
Made of H13
Coolant Thru Capability
Can be Used in All Materials
To run coolant thru, face mills require Coolant Arbor Screws.
Features & Benefits
H6 bore tolerance - 38% more accurate than standard face mills
Less vibration
Longer insert life

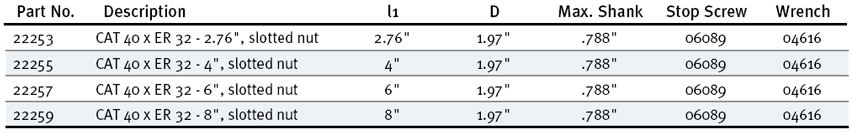

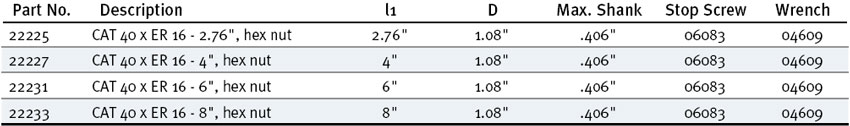

Other Available CAT 40 ER Collet Chucks
