4 Pcs. Mitee-Bite Products LLC
Made in USA Brand New 3/8-16 Machinable Fixture Workholding Clamps
These clamps, with the machinable steel washers, provide more flexibility for holding round or unusual shaped parts. Parts can be held directly to the fixture plate surface or elevated for through drilling.A special screw is provided with each package to hold the washer in the proper place during machining.
The flat edge is the same location as our original fixture clamps. It can be used where a stronger clamping surface is required.
- Low-profile
- Made of mild steel for machinability

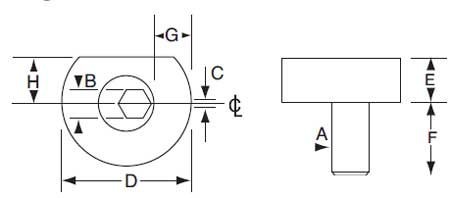

| A | B | C | D | E | F | G* | H | Max.
Torque
(Ft/Lbs) | Holding
Force |
|---|
| 3/8-16 | 3/16 | .050 | 1.230 | .350 | .710 | .275 | .400 | 20.8 | 2,000 lbs |
These images shows how these Fixture Clamp can be use for application. You will only get described clamps nothing else.
