21 Pcs. Techniks
Brand New ER 40 1/8" or # 6 to 1" + 1/8", 1/4", 3/8" & 1/2" NPT TC Rigid Tap Collet Set
Features- Locking feature prevents spinning the tap
- Replace expensive tap holders
- Metric sizes available upon request
Note
Use with any standard ER, RD, DR, ESX or BR collet chucks for all rigid tapping jobs.
Special design locks flat-sided tap shanks into collet preventing the tap from spinning inside the collet.
For best results replace standard nut with a “Power Coat” nut to increase clamping pressure up to 75%.

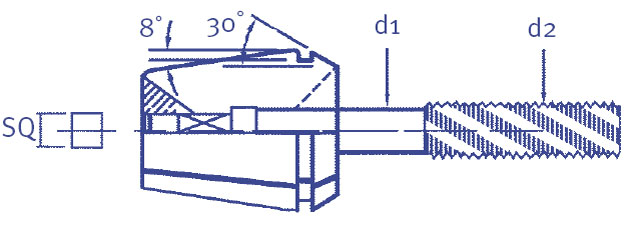

ER 40 TC Rigid Tap Collets| Part# | d1 | SQ | d2 |
|---|
| 05710-141 | .141" | .110" | 1/8" or #6 |
| 05710-168 | .168" | .131" | 5/32" or #8 |
| 05710-194 | .194" | .152" | 3/16" or #10 |
| 05710-220 | .220" | .165" | 7/32" or #12 |
| 05710-255 | .255" | .191" | 1/4" |
| 05710-318 | .318" | .238" | 5/16" |
| 05710-323 | .323" | .242" | 7/16" |
| 05710-367 | .367" | .275" | 1/2" |
| 05710-381 | .381" | .286" | 3/8" |
| 05710-429 | .429" | .322" | 9/16" |
| 05710-437 | .437" | .328" | 1/8" NPT |
| 05710-480 | .480" | .360" | 5/8" |
| 05710-542 | .542" | .406" | 11/16" |
| 05710-562 | .562" | .421" | 1/4" NPT |
| 05710-590 | .590" | .442" | 3/4" |
| 05710-652 | .652" | .489" | 13/16" |
| 05710-687 | .687" | .515" | 1/2" NPT |
| 05710-697 | .697" | .523" | 7/8" |
| 05710-700 | .700" | .531" | 3/8" NPT |
| 05710-760 | .760" | .570" | 15/16" |
| 05710-800 | .800" | .600" | 1" |
