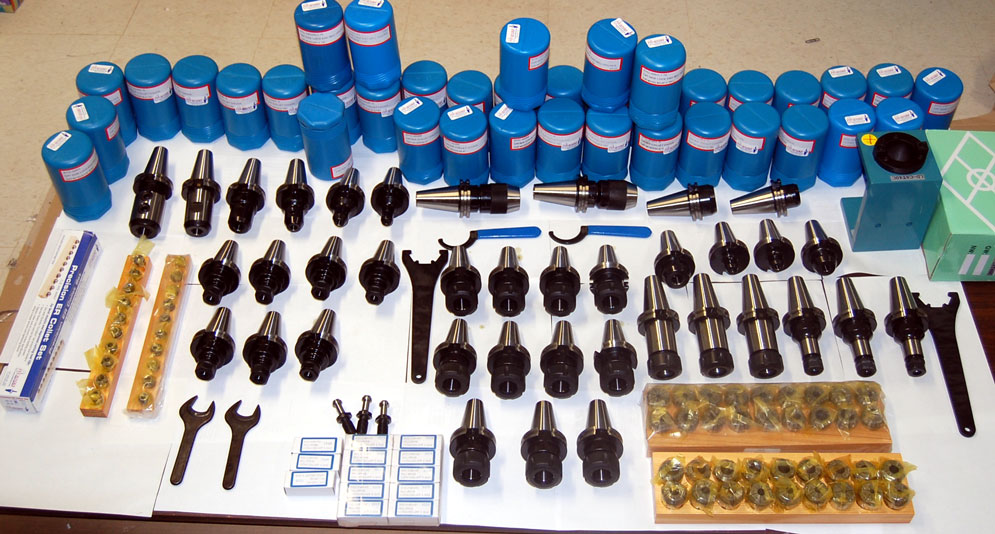

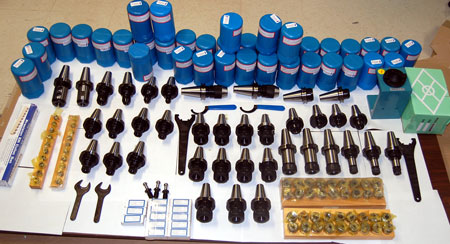

137 Pcs. Techniks CAT 40 CNC Mill Tooling Kit-Matsura-ER Collet,Chuck,Pull Stud

Your Price: $7,295.00

Part Number: Tech-CAT40-Jumbo-KIT-2-C

Availability: In Stock. Free Shipping.

Quantity

Description

137 Pcs. Techniks Brand New CAT 40 25,000 RPM Balanced CNC Tooling Package for CNC Mill (Various Make & Models), Includes 15 Pcs. of ER 32 Collet Chucks, 9 Pcs. of ER 16 Collet Chucks, 1 Set of ER 16 x 10 Pcs. 3/32" to 3/8" x 32nds & ER 32 18 Pcs. 7/32" to 3/4" x 32nds Collet Sets, 1 Set of ER 16 x 10 Pcs. 3/32" to 3/8" x 32nds & ER 32 18 Pcs. 7/32" to 3/4" x 32nds Steel Sealed Coolant Collet Set, 1 Pc. of 1/4", 3/8", 1/2", 5/8" , 3/4", 1" Standard Length End Mill Holder, 1 Pc. of 1/4", 3/8", 1/2", 5/8", 3/4" & 1" Stubby Length End Mill Holder, 38 Pcs.CAT 40 Pull Studs (45, 60 or 90 Degree), 2 Pcs. of 1/2" SPU Drill Chucks, 2 Pcs. of ER 16 & ER 32 Wrenches & 1 Pc. of Top/Side Mount Tightening Fixture. Enjoy Huge Saving On Techniks Certified Tooling!!!!

Kit Includes:

9 Pcs. Techniks Brand New CAT 40 ER 16 x 2.76" 25,000 RPM Balanced Collet Chucks w/Hex Nut, Part# 22225
1 Set of Techniks Brand New ER 16 3/32" to 3/8" x 32nds .0002" T.I.R Collet Set, Part# 04209IS
1 Set of Techniks Brand New ER 16 3/32" to 3/8" x 32nds Steel Sealed Precision Coolant Collet Set, Part# 04543IS
2 Pcs. Techniks Brand New ER16-A Hex Collet Chuck Wrenches, Part# 04609
15 Pcs. Techniks Brand New CAT 40 ER 32 x 2.76" 25,000 RPM Balanced Collet Chucks, Part# 22253
1 Set of Techniks Brand New ER 32 7/32" to 3/4" x 32nds .0002" T.I.R Collet Set, Part# 04212IS
1 Set of Techniks Brand New ER 32 7/32" to 3/4" x 32nds Steel Sealed Precision Coolant Collet Set, Part# 04546IS
2 Pcs. Techniks Brand New ER32-E Spanner Collet Chuck Wrenches, Part# 04616
1 Pc. Techniks Brand New CAT 40 1/4" x 1.75" 10,000 RPM Balanced End Mill Holder, Part# 22911-1.75
1 Pc. Techniks Brand New CAT 40 1/4" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22911
1 Pc. Techniks Brand New CAT 40 3/8" x 1.75" 10,000 RPM Balanced End Mill Holder, Part# 22915-1.75
1 Pc. Techniks Brand New CAT 40 3/8" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22915
1 Pc. Techniks Brand New CAT 40 1/2" x 1.75" 10,000 RPM Balanced End Mill Holder, Part# 22917-1.75
1 Pc. Techniks Brand New CAT 40 1/2" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22917
1 Pc. Techniks Brand New CAT 40 5/8" x 1.75" 10,000 RPM Balanced End Mill Holder, Part# 22919-1.75
1 Pc. Techniks Brand New CAT 40 5/8" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22919
1 Pc. Techniks Brand New CAT 40 3/4" x 1.75" 10,000 RPM Balanced End Mill Holder, Part# 22921-1.75
1 Pc. Techniks Brand New CAT 40 3/4" x 3.50" 10,000 RPM Balanced End Mill Holder, Part# 22921
1 Pc. Techniks Brand New CAT 40 1" x 1.75" 10,000 RPM Balanced End Mill Holder, Part# 22925A-1.75
1 Pc. Techniks Brand New CAT 40 1" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22925

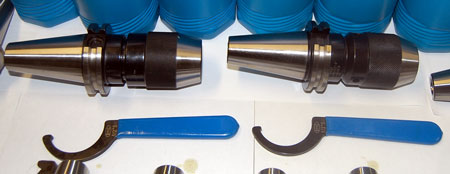

2 Pcs. Techniks Brand New CAT 40 1/2" x 4.00" SPU Precision Keyless Drill Chucks, Part# 22403
38 Pcs. Techniks Brand New CAT 40 Retention Knobs (Standard 45, 60 ro 90 Degree to fit your CNC Mill not special), Part#
1 Pc. Techniks Brand New CAT/BT 40 Side/Top Mount Tightening Fixture, Part# 07884

Qty.	Part No.	Description
15	22253	CAT 40 x ER32-2.76
1	04212IS	ER 32 x 18 pc. collet set - inch
1	04546IS	ER 32 x 18 pc. steel sealed coolant collet set - inch
9	22225	CAT 40 x ER16-2.76
1	04209IS	ER 16 x 10 pc. collet set - inch
1	04543IS	ER 16 x 10 pc. steel sealed coolant collet set - inch
2	22403	CAT 40 x SPU 1/2 x 4"
1	22911-1.75	CAT 40 x SLN 1/4" x 1.75"
1	22911	CAT 40 x SLN 1/4" x 3"
1	22915-1.75	CAT 40 x SLN 3/8" x 1.75"
1	22915	CAT 40 x SLN 3/8" x 3"
1	22917-1.75	CAT 40 x SLN 1/2" x 1.75"
1	22917	CAT 40 x SLN 1/2" x 3"
1	22919-1.75	CAT 40 x SLN 5/8" x 1.75"
1	22919	CAT 40 x SLN 5/8" x 3"
1	22921-1.75	CAT 40 x SLN 3/4" x 1.75"
1	22921	CAT 40 x SLN 3/4" x 3.5"
1	22925A-1.75	CAT 40 x SLN 1" x 1.75"
1	22925	CAT 40 x SLN 1" x 4"
38	-	CAT40 (45,60 or 90 Degree) Pull Stud/Retention Knob
2	04616	ER32 - E Wrench
2	04609	ER16 - A Wrench
1	07884	CAT 40 Top/Side Mount Fixture

CAT 40 ER Collet Chuck

Balanced to 25,000 RPM @ G2.5
T.I.R 0.0001" measured from taper to collet pocket
Techniks Lab Certified each holder comes with a certificated verifying accuracy and balance

ER Collet

0.0002" maximum run-out
Each collet hand inspected

ER Steel Sealed Coolant Collet

Sealed to 2000 PSI
No plugs
Protect tool holders from contaminants
Use with standard ER Power Coat nuts

CAT 40 End Mill Holder

High precision bore (H5) is best in industry
Balanced to 10,000 RPM
Taper ground to AT3 for maximum spindle contact

CAT 40 ER Collet Chucks

Part#	Description	l1	D	Max. Shank	Stop Screw	Wrench
22225	CAT 40 x ER 16 - 2.76", hex nut	2.76"	1.08"	.406"	06083	04609
22253	CAT 40 x ER 32 - 2.76", slotted nut	2.76"	1.97"	.788"	06089	04616

Note: Please call me @ 401-490-1141 for any questions you may have. Quantity discount available.
