135 Techniks CAT 40 Tooling Kit for Mori-Seiki CNC Mill-ER Chuck,Stud,Collet,EMH
Your Price:
$6,750.00
Part Number:
Tech-CAT40-Jumbo-KIT-4-C
Availability:
In Stock.
Free Shipping.
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description

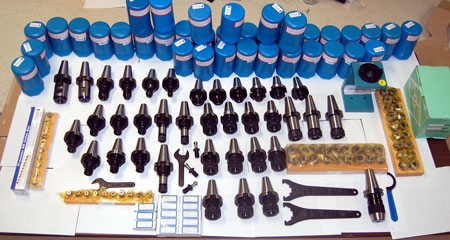

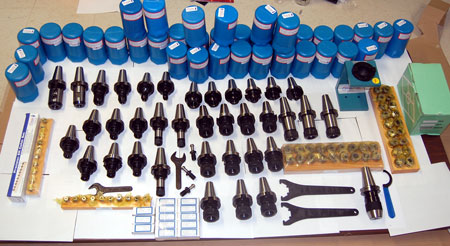

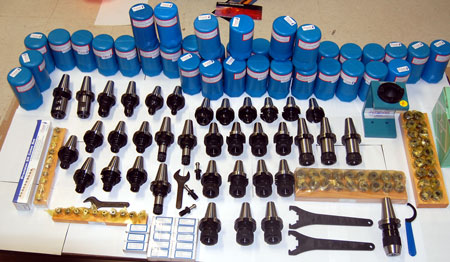

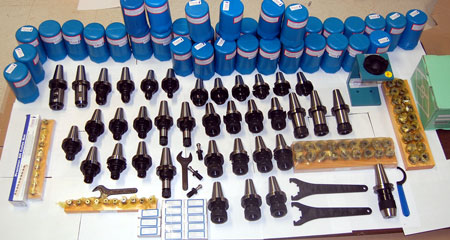

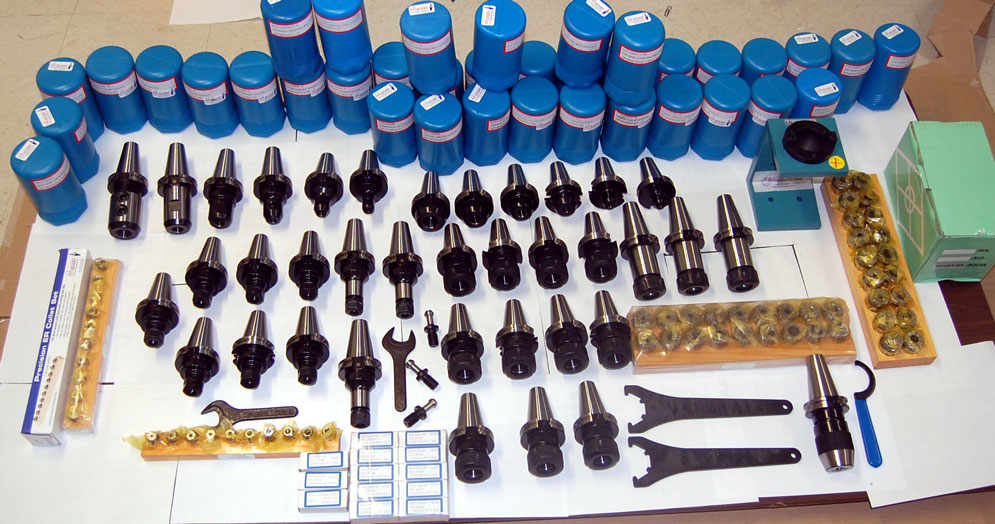

135 Pcs. Techniks
Brand New
CAT 40 25,000 RPM Balanced CNC Tooling Package for CNC Mill (Various Make & Models), Includes 14 Pcs. of ER 32 Collet Chucks, 10 Pcs. of ER 16 Collet Chucks, 1 Set of ER 16 x 10 Pcs. 3/32" to 3/8" x 32nds & ER 32 18 Pcs. 7/32" to 3/4" x 32nds , ER 16 x 10 Pcs. 3/32" to 3/8" x 32nds & ER 32 18 Pcs. 7/32" to 3/4" x 32nds Steel Sealed Coolant Collet, 1 Pc. of 1/4", 3/8", 1/2", 5/8" , 3/4", 1" Standard Length End Mill Holder, 1 Pc. of 1/4", 3/8", 1/2", 5/8", 3/4" & 1" Stubby Length End Mill Holder, 37 Pcs.CAT 40 Pull Studs (45, 60 or 90 Degree), 1 Pc. of 1/2" SPU Drill Chuck, 2 Pcs. of ER 16 & ER 32 Wrenches & 1 Pc. of Top/Side Mount Tightening Fixture. Enjoy Huge Saving On Techniks Certified Tooling!!!!
Kit Includes:

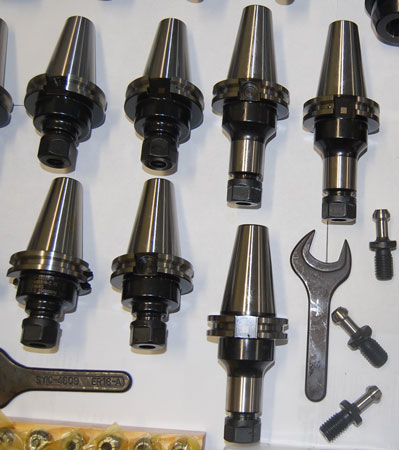

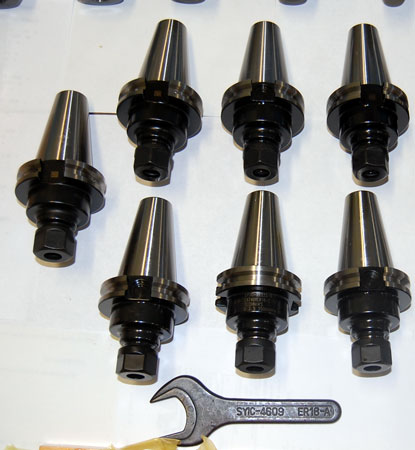

7 Pcs. Techniks
Brand New
CAT 40 ER 16 x 2.76" 25,000 RPM Balanced Collet Chucks w/Hex Nut, Part# 22225
3 Pcs. Techniks
Brand New
CAT 40 ER 16 x 4.00" 25,000 RPM Balanced Collet Chucks w/Hex Nut, Part# 22227
1 Set of Techniks
Brand New
ER 16 3/32" to 3/8" x 32nds .0002" T.I.R Collet, Part# 04209IS
1 Set of Techniks
Brand New
ER 16 3/32" to 3/8" x 32nds Steel Sealed Precision Coolant Collet, Part# 04543IS
2 Pcs Techniks
Brand New
ER16-A Hex Collet Chuck Wrenches, Part# 04609
11 Pcs. Techniks
Brand New

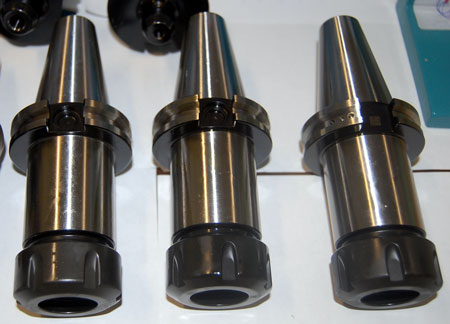

CAT 40 ER 32 x 2.76" 25,000 RPM Balanced Collet Chucks, Part# 22253
3 Pcs. Techniks
Brand New
CAT 40 ER 32 x 4.00" 25,000 RPM Balanced Collet Chucks, Part# 22255
1 Set of Techniks
Brand New
ER 32 7/32" to 3/4" x 32nds .0002" T.I.R Collet, Part# 04212IS
1 Set of Techniks
Brand New
ER 32 7/32" to 3/4" x 32nds Steel Sealed Precision Coolant Collet, Part# 04546IS
2 Pcs. Techniks
Brand New
ER32-E Spanner Collet Chuck Wrenches, Part# 04616
1 Pc. Techniks
Brand New
CAT 40 1/4" x 1.75" 10,000 RPM Balanced End Mill Holder, Part# 22911-1.75
1 Pc. Techniks
Brand New
CAT 40 1/4" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22911
1 Pc. Techniks
Brand New
CAT 40 3/8" x 1.75" 10,000 RPM Balanced End Mill Holder, Part# 22915-1.75
1 Pc. Techniks
Brand New
CAT 40 3/8" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22915
1 Pc. Techniks
Brand New
CAT 40 1/2" x 1.75" 10,000 RPM Balanced End Mill Holder, Part# 22917-1.75
1 Pc. Techniks
Brand New
CAT 40 1/2" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22917
1 Pc. Techniks
Brand New
CAT 40 5/8" x 1.75" 10,000 RPM Balanced End Mill Holder, Part# 22919-1.75
1 Pc. Techniks
Brand New
CAT 40 5/8" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22919
1 Pc. Techniks
Brand New
CAT 40 3/4" x 1.75" 10,000 RPM Balanced End Mill Holder, Part# 22921-1.75
1 Pc. Techniks
Brand New
CAT 40 3/4" x 3.50" 10,000 RPM Balanced End Mill Holder, Part# 22921
1 Pc. Techniks
Brand New
CAT 40 1" x 1.75" 10,000 RPM Balanced End Mill Holder, Part# 22925A-1.75
1 Pc. Techniks
Brand New
CAT 40 1" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22925

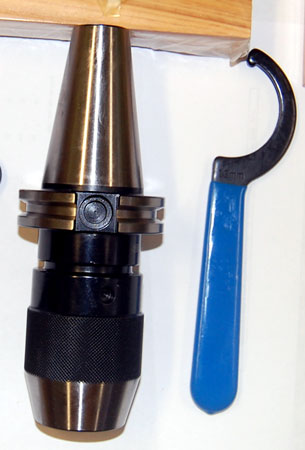

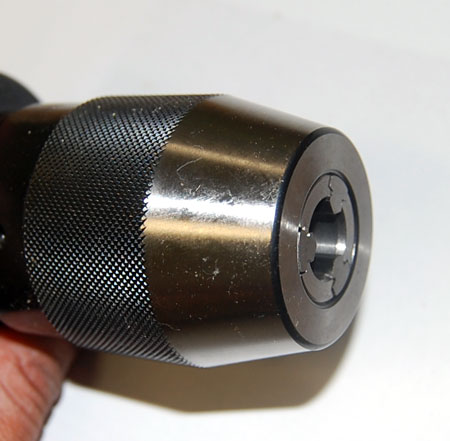

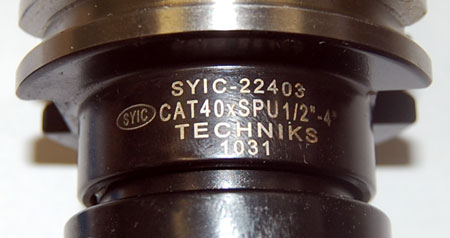

1 Pc. Techniks
Brand New
CAT 40 1/2" x 4.00" SPU Precision Keyless Drill Chuck, Part# 22403
37 Pcs. Techniks
Brand New
CAT 40 Retention Knobs (Standard 45, 60 ro 90 Degree to fit your CNC Mill not special), Part#

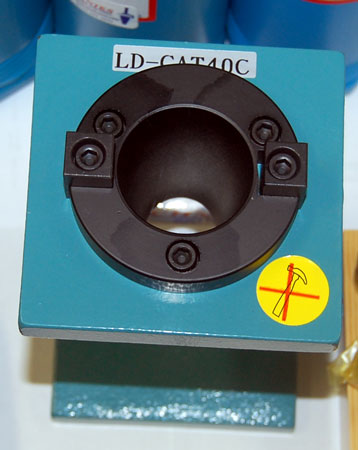

1 Pc. Techniks
Brand New
CAT/BT 40 Side/Top Mount Tightening Fixture, Part# 07884
Qty.
Part No.
Description
11
22253
CAT 40 x ER32-2.76
3
22255
CAT 40 x ER32-4.00
1
04212IS
ER 32 x 18 pc. collet set - inch
1
04546IS
ER 32 x 18 pc. steel sealed coolant collet set - inch
7
22225
CAT 40 x ER16-2.76
3
22227
CAT 40 x ER16-4.00
1
04209IS
ER 16 x 10 pc. collet set - inch
1
04543IS
ER 16 x 10 pc. steel sealed coolant collet set - inch
1
22403
CAT 40 x SPU 1/2 x 4"
1
22911-1.75
CAT 40 x SLN 1/4" x 1.75"
1
22911
CAT 40 x SLN 1/4" x 3"
1
22915-1.75
CAT 40 x SLN 3/8" x 1.75"
1
22915
CAT 40 x SLN 3/8" x 3"
1
22917-1.75
CAT 40 x SLN 1/2" x 1.75"
1
22917
CAT 40 x SLN 1/2" x 3"
1
22919-1.75
CAT 40 x SLN 5/8" x 1.75"
1
22919
CAT 40 x SLN 5/8" x 3"
1
22921-1.75
CAT 40 x SLN 3/4" x 1.75"
1
22921
CAT 40 x SLN 3/4" x 3.5"
1
22925A-1.75
CAT 40 x SLN 1" x 1.75"
1
22925
CAT 40 x SLN 1" x 4"
37
-
CAT40 (45,60 or 90 Degree) Pull Stud/Retention Knob
2
04616
ER32 - E Wrench
2
04609
ER16 - A Wrench
1
07884
CAT 40 Top/Side Mount Fixture

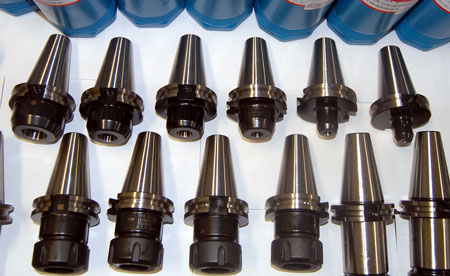

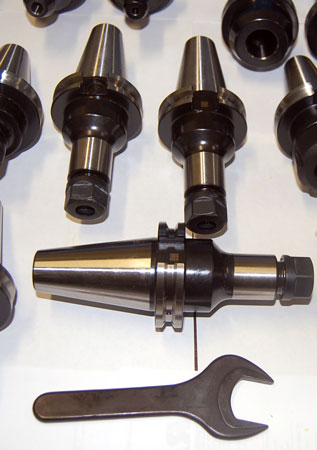

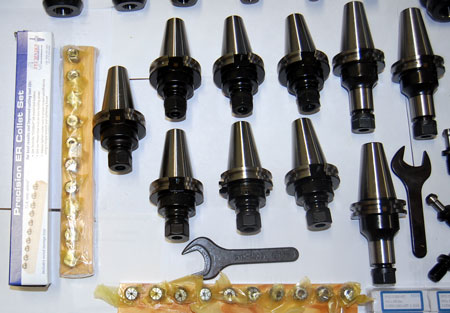

CAT 40 ER Collet Chuck
Balanced to 25,000 RPM @ G2.5
T.I.R 0.0001" measured from taper to collet pocket
Techniks Lab Certified each holder comes with a certificated verifying accuracy and balance
ER Collet
0.0002" maximum run-out
Each collet hand inspected

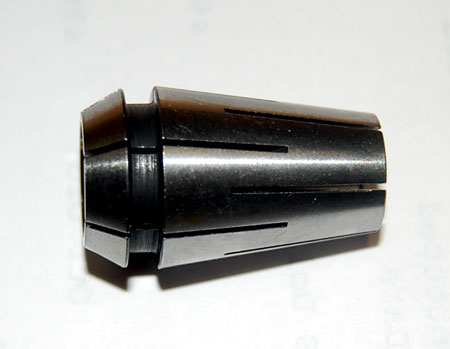

ER Steel Sealed Coolant Collet
Sealed to 2000 PSI
No plugs
Protect tool holders from contaminants
Use with standard ER Power Coat nuts
CAT 40 End Mill Holder
High precision bore (H5) is best in industry
Balanced to 10,000 RPM
Taper ground to AT3 for maximum spindle contact
CAT 40 ER Collet Chucks
Part#
Description
l1
D
Max. Shank
Stop Screw
Wrench
22225
CAT 40 x ER 16 - 2.76", hex nut
2.76"
1.08"
.406"
06083
04609
22227
CAT 40 x ER 16 - 4.00", hex nut
4.00"
1.08"
.406"
06083
04609
22253
CAT 40 x ER 32 - 2.76", slotted nut
2.76"
1.97"
.788"
06089
04616
22255
CAT 40 x ER 32 - 4.00", slotted nut
4.00"
1.97"
.788"
06089
04616
Note: Please call me @ 401-490-1141 for any questions you may have. Quantity discount available.
