111 Pcs. Techniks

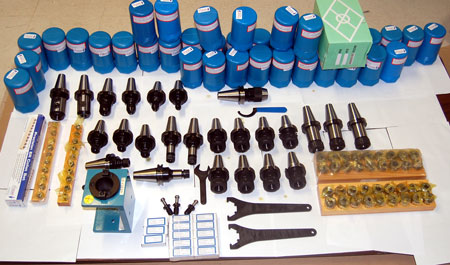

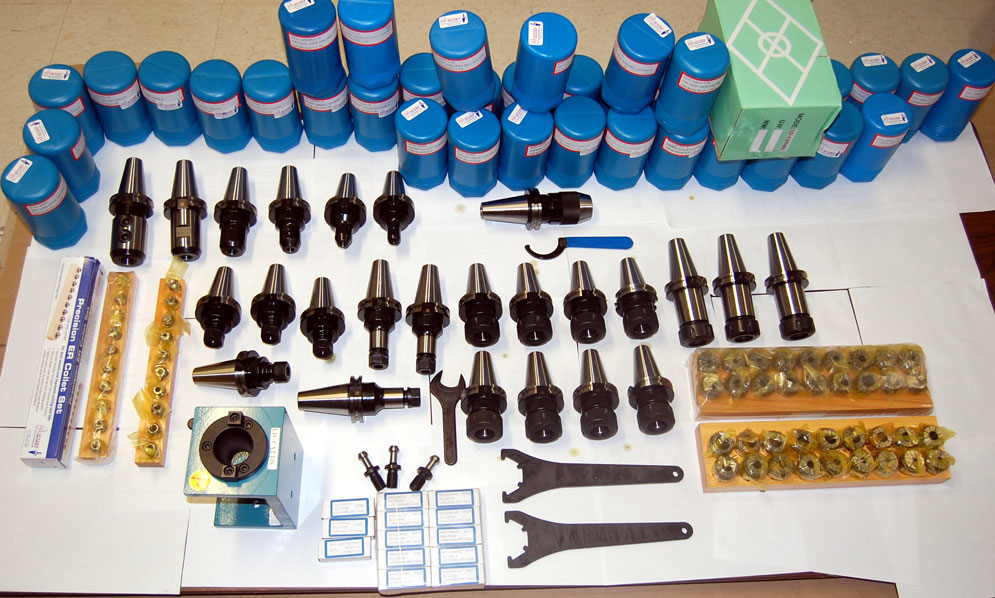

Brand New CAT 40 25,000 RPM Balanced CNC Tooling Package for CNC Mill (Various Make & Models), Includes 11 Pcs. of ER 32 Collet Chucks, 7 Pcs. of ER 16 Collet Chucks, 1 Set of ER 16 x 10 Pcs. 3/32" to 3/8" x 32nds & ER 32 18 Pcs. 7/32" to 3/4" x 32nds Collet Sets, 1 Set of ER 16 x 10 Pcs. 3/32" to 3/8" x 32nds & ER 32 18 Pcs. 7/32" to 3/4" x 32nds Steel Sealed Coolant Collet Set, 1 Pc. of 1/4", 3/8", 1/2", 5/8" , 3/4", 1" Standard Length End Mill Holder, 25 Pcs.CAT 40 Pull Studs (45, 60 or 90 Degree), 1 Pc. of 1/2" SPU Drill Chuck, 2 Pcs. of ER 16 & ER 32 Wrenches & 1 Pc. of Top/Side Mount Tightening Fixture. Enjoy Huge Saving On Techniks Certified Tooling!!!!

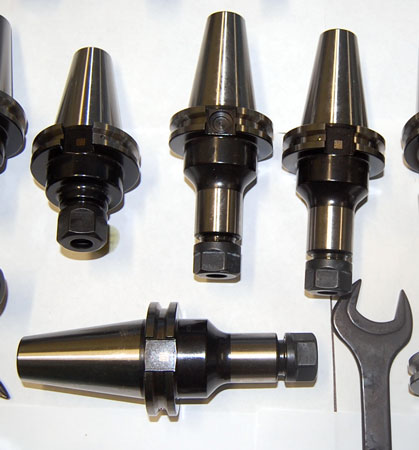

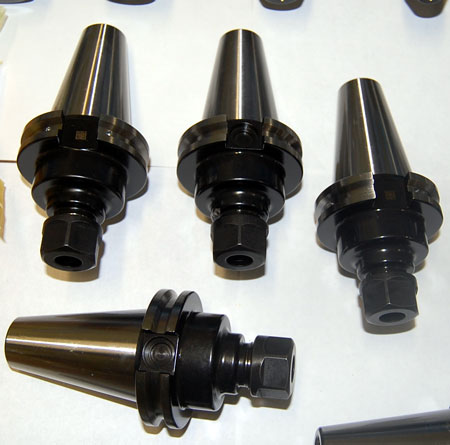

Kit Includes:- 4 Pcs. Techniks Brand New CAT 40 ER 16 x 2.76" 25,000 RPM Balanced Collet Chucks w/Hex Nut, Part# 22225
- 3 Pcs. Techniks Brand New CAT 40 ER 16 x 4.00" 25,000 RPM Balanced Collet Chucks w/Hex Nut, Part# 22227

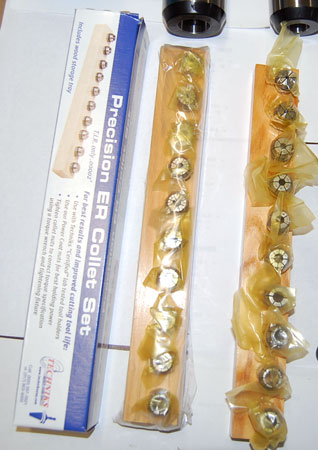

- 1 Set of Techniks Brand New ER 16 3/32" to 3/8" x 32nds .0002" T.I.R Collet Set, Part# 04209IS
- 1 Set of Techniks Brand New ER 16 3/32" to 3/8" x 32nds Steel Sealed Precision Coolant Collet Set, Part# 04543IS
- 2 Pcs. Techniks Brand New ER16-A Hex Collet Chuck Wrenches, Part# 04609

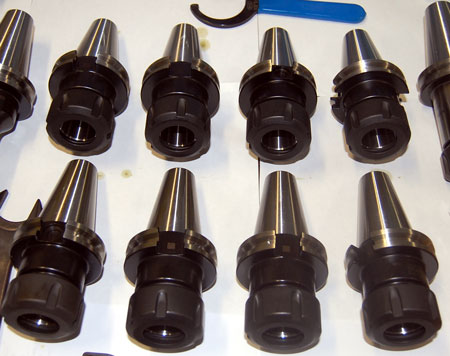

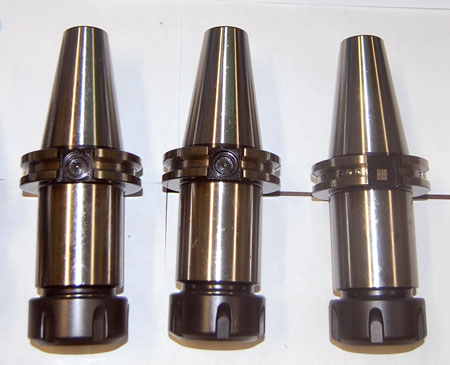

- 8 Pcs. Techniks Brand New CAT 40 ER 32 x 2.76" 25,000 RPM Balanced Collet Chucks, Part# 22253
- 3 Pcs. Techniks Brand New CAT 40 ER 32 x 4.00" 25,000 RPM Balanced Collet Chucks, Part# 22255

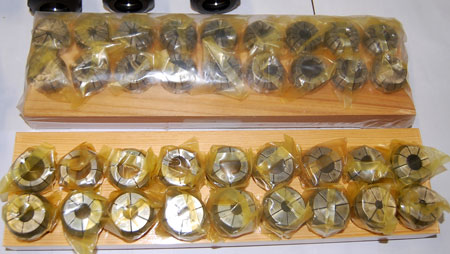

- 1 Set of Techniks Brand New ER 32 7/32" to 3/4" x 32nds .0002" T.I.R Collet Set, Part# 04212IS
- 1 Set of Techniks Brand New ER 32 7/32" to 3/4" x 32nds Steel Sealed Precision Coolant Collet Set, Part# 04546IS
- 2 Pcs. Techniks Brand New ER32-E Spanner Collet Chuck Wrenches, Part# 04616
- 1 Pc. Techniks Brand New CAT 40 1/4" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22911
- 1 Pc. Techniks Brand New CAT 40 3/8" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22915
- 1 Pc. Techniks Brand New CAT 40 1/2" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22917
- 1 Pc. Techniks Brand New CAT 40 5/8" x 3.00" 10,000 RPM Balanced End Mill Holder, Part# 22919
- 1 Pc. Techniks Brand New CAT 40 3/4" x 3.50" 10,000 RPM Balanced End Mill Holder, Part# 22921
- 1 Pc. Techniks Brand New CAT 40 1" x 4.00" 10,000 RPM Balanced End Mill Holder, Part# 22925
- 1 Pc. Techniks Brand New CAT 40 1/2" x 4.00" SPU Precision Keyless Drill Chuck, Part# 22403
- 25 Pcs. Techniks Brand New CAT 40 Retention Knobs (Standard 45, 60 ro 90 Degree to fit your CNC Mill not special), Part#
- 1 Pc. Techniks Brand New CAT/BT 40 Side/Top Mount Tightening Fixture, Part# 07884
Qty. | Part No. | Description |
---|
8 | 22253 | CAT 40 x ER32-2.76 |
3 | 22255 | CAT 40 x ER32-4.00 |
1 | 04212IS | ER 32 x 18 pc. collet set - inch |
1 | 04546IS | ER 32 x 18 pc. steel sealed coolant collet set - inch |
4 | 22225 | CAT 40 x ER16-2.76 |
3 | 22227 | CAT 40 x ER16-4.00 |
1 | 04209IS | ER 16 x 10 pc. collet set - inch |
1 | 04543IS | ER 16 x 10 pc. steel sealed coolant collet set - inch |
1 | 22403 | CAT 40 x SPU 1/2 x 4" |
1 | 22911 | CAT 40 x SLN 1/4" x 3" |
1 | 22915 | CAT 40 x SLN 3/8" x 3" |
1 | 22917 | CAT 40 x SLN 1/2" x 3" |
1 | 22919 | CAT 40 x SLN 5/8" x 3" |
1 | 22921 | CAT 40 x SLN 3/4" x 3.5" |
1 | 22925 | CAT 40 x SLN 1" x 4" |
25 | - | CAT40 (45,60 or 90 Degree) Pull Stud/Retention Knob |
2 | 04616 | ER32 - E Wrench |
2 | 04609 | ER16 - A Wrench |
1 | 07884 | CAT 40 Top/Side Mount Fixture |
CAT 40 ER Collet Chuck- Balanced to 25,000 RPM @ G2.5
- T.I.R 0.0001" measured from taper to collet pocket
- Techniks Lab Certified each holder comes with a certificated verifying accuracy and balance
ER Collet- 0.0002" maximum run-out
- Each collet hand inspected
CAT 40 End Mill Holder- High precision bore (H5) is best in industry
- Balanced to 10,000 RPM
- Taper ground to AT3 for maximum spindle contact
CAT 40 ER Collet ChucksPart# | Description | l1 | D | Max. Shank | Stop Screw | Wrench |
---|
22225 | CAT 40 x ER 16 - 2.76", hex nut | 2.76" | 1.08" | .406" | 06083 | 04609 |
22227 | CAT 40 x ER 16 - 4.00", hex nut | 4.00" | 1.08" | .406" | 06083 | 04609 |
22253 | CAT 40 x ER 32 - 2.76", slotted nut | 2.76" | 1.97" | .788" | 06089 | 04616 |
22255 | CAT 40 x ER 32 - 4.00", slotted nut | 4.00" | 1.97" | .788" | 06089 | 04616 |
Note: Please call me @ 401-490-1141 for any questions you may have. Quantity discount available.
