Techniks CAT 40 ER 16 25K Dual Drive CNC Collet Chuck-BIG Plus, BIG Daishowa

Your Price: $195.00
In Stock.
Part Number:Tech-46.122.16.276

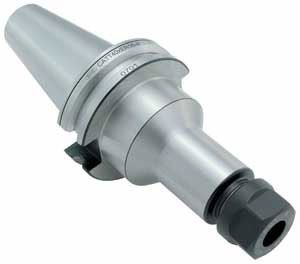

1 Pc. Techniks Brand New CAT 40 ER 16 x 2.76" 25K RMP @ G2.5 Balanced High Speed CoolFlex (DIN B Enabled) Dual Drive Collet Chuck (with hex nut) for Big Plus & Standard CNC Mill
    Techniks Collet Chuck Advantages
  • Better rigidity and reduced vibration
  • Improved performance at high metal removal rates and when machining at extended lengths

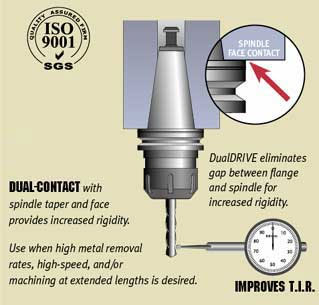

  • Provides the benefits of dual-contact machining on standard spindles too!
  • Increase feed rates up to 20%
  • Extend tool life and reduce scrap
  • CoolFLEX DIN B coolant feature on ER Collet Chucks and Shrink-Fit tool holders

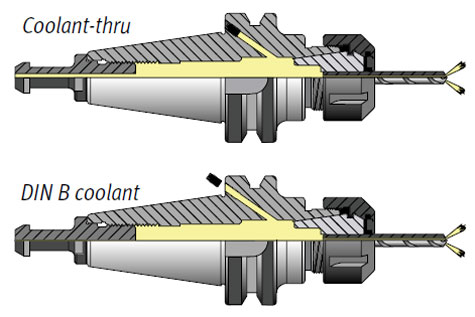

CoolFLEX Tool Holders

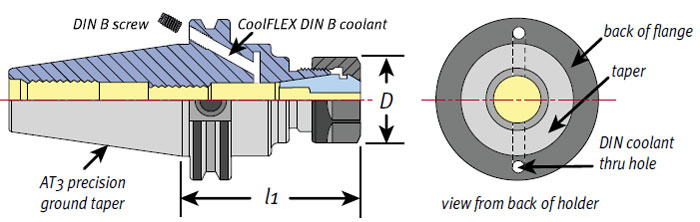

CoolFLEX holders are factory set for coolant-thru spindle. Simply remove stop screws (2) for DIN B coolant.

Holder includes our Power Coat nut that holds 75% tighter than standard ER nuts, to provide better T.I.R. and extended cutting tool life.
NOTE: ER 16 and 20 tool holders come with hex nut as standard.
For slotted nuts simply add SLOTNUT to the end of the part number.
For holders with coolant nut included, add -C to the part number

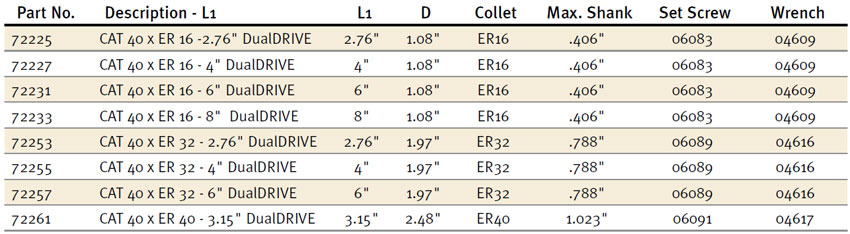

CAT 40, ER DualDrive Collet Chucks
Part#Descriptionl1DMax. ShankStop ScrewWrench
72225CAT 40 x ER 16 - 6.00", DualDRIVE hex nut2.76"1.08".406"0608304609

Note: Please call me @ 401-490-1141 for any questions you may have. Quantity discount available.

<

Other Available CAT 40 ER Collet Chucks
