1 Pc. Techniks Brand New
CAT 40 1/2" x 5.906" Hydros 25K RMP @ G2.5 Balanced High Speed High Precision AD/B Coolant Extenede Length Hydraulic Tool Holder for CNC Mills.
HMC extended length hydros are a great choice for mould work or wherever high accuracy and smooth cutting is required.
- Balanced to 25,000 RPM at G2.5
- T.I.R. 0.0001" measured at 3X shank diameter
- Taper precision ground to AT3 standard AD/B CoolFLEX coolant standard Use for face milling & edge milling, drilling, reaming & chamfering
- Use precision reduction sleeves for fast tool changes
Hydraulic Chucks provide powerful, vibration-free cutting in all materials. Hydros are a good choice when you need T.I.R. of 0.0001" and high holding power.
Tool changes are fast and easy and can be performed in-spindle without the need for setup equipment. Simply turn the adjusting screw to apply hydraulic clamping on tool shank. Use reduction sleeves to run a variety of shank sizes all from 1/8" up to 5/8"

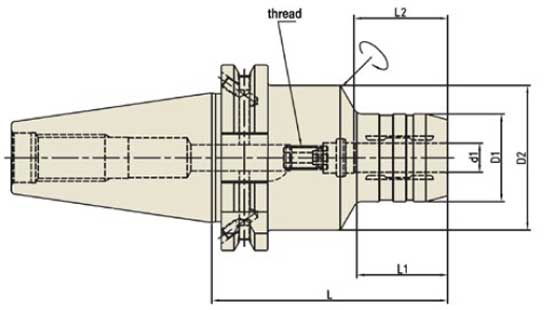

|854034||CAT40AD/B-HMC 1/2-5.91 Hydro||1/2"||1.024"||1.969"||5.906"||3.937"||1.457"||M10x1.0|
