1 Pc. Skoda
Brand New MT #3 Precision Live Center Set w/Interchangeable Inserts for Lathes
Skoda Live Center Sets - CSN 243326:- The rotating spindle is extended right through the tapered shank
- Two specially designed adjustable needle-roller bearings carry all radial loads
- A heavy duty ball thrust bearing takes all axial thrust
- Complete protection of bearings from the ingress of coolant, dirt or swarf is provided by the built-in oil-seal, which also prevents loss of lubricant

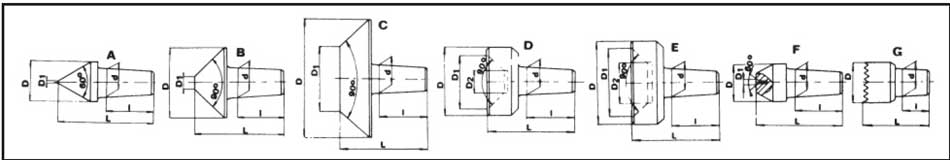

| Part No. | Morse
Taper No. | All | A
L | B-G
L | A | B | C | D | E | F | G
D |
|---|
| d | l | D | D1 | D | D1 | D | D1 | D | D1 | D2 | D | D1 | D2 | D | D1 |
|---|
| 310-705 | 3 | .590 | .984 | 1.968 | 1.771 | .787 | .019 | 1.417 | .236 | 2.480 | 1.299 | 1.417 | 1.102 | .472 | 1.771 | 1.496 | .866 | .787 | .098 | .984 |
