1 Pc. Nexus Cutting Tool
Brand New 1" x 7.87"(Long) x 3 FLT APKT 1003 Indexable Insert Non-Coolant End Mill Cutter w/30 Pcs. of Lamina Technology APKT 1003-PDTR, LT 30 Carbide Milling Inserts
Kit Includes:- 1 Pc. Nexus Cutting Tool 1" x 1" x 7.87(OAL) x 3 FLT APKT 1003 Insert Indexable Non-Coolant End Mill Cutter
- 30 Pcs. Lamina Technology APKT 1003PDTR, LT 30 Carbide Milling Inserts for Titanium, Stainless Steels, High Temp. Alloys, Steel, Cast Iron & Aluminum
Part

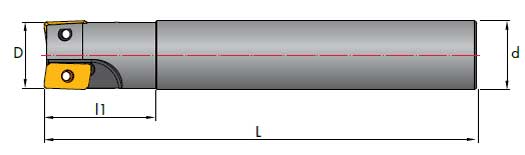

Number | Description | Insert | D | d | L | Z | l1 | a | Screw | Wrench |
|---|
| 1661238 | IEM 90-1.00-1.00-7.87-3-10 | AP--1003 | 1.00 | 1.00 | 7.87 | 3 | 0.984 | 5 Deg. | 9316446 | 9355333 |
Indexable End Mill Product Information- Available in 1/2", 5/8", 3/4", 1" Diameters
- Take Insert APKT1003 and APLX1003 for Most Materials-APGT1003 for Aluminum (2 corners)
- Made of H13 Tool Steel
- Coolant and Non-coolant Versions
- Also Comes in 1", 1-1/4", 1-1/2"
- Takes Insert APKT1604 for Most Materials and APGT1604 for Aluminum (2 corners)
- 1" Version has Weldon Shank
- Can be Used in all materials.
Benefits- H13 tool steel provides a more rigid tool for less deflection in the cut, and extended tool life
- H6 shank tolerance provides 38% better T.I.R. to improve accuracy and extend insert life
Grade: LT 30, A sub-micro grain substrate with a very thick high-pulse PVD coating with better adhesion than normal coatings. It can be run in all materials including aluminum, The Lamina Multi-Mat(TM) LT 30 Grade for Milling can machine most materials with ONLY ONE GRADE (Steel, Stainless, Cast Iron, High Temp. Alloys,Hardened Steel, Aluminium & Non ferrous Alloys)
Lamina Technologies High-Performance
3 x the Thickness of Conventional PVD!
Features- Ultra-thick, patented PVD coating dramatically increases tool life
- Very low flank and plastic deformation minimize or eliminate offsets
- Advanced high-performance grade offers ultimate versatility
- Exceptional performance in High Temp Alloys
- Breakthroughs in honing and coating technologies
- Thickest PVD coating in the industry
- Freedom from the cycle of ""new grade"" announcements
- Facing, longitudinal turning, internal and external operations
- Fits standard cutters available in all markets
- Excellent toughness & wear resistance
