Mitutoyo

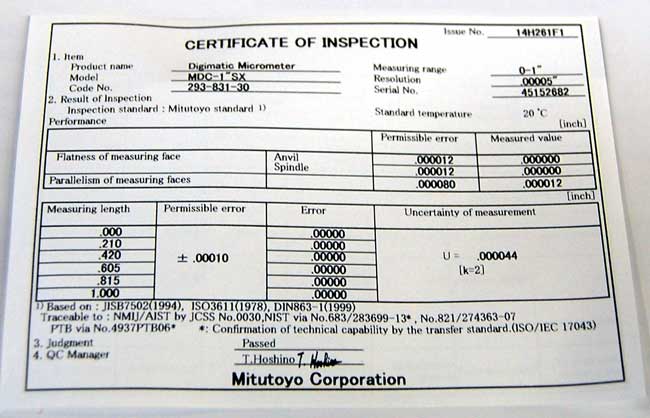

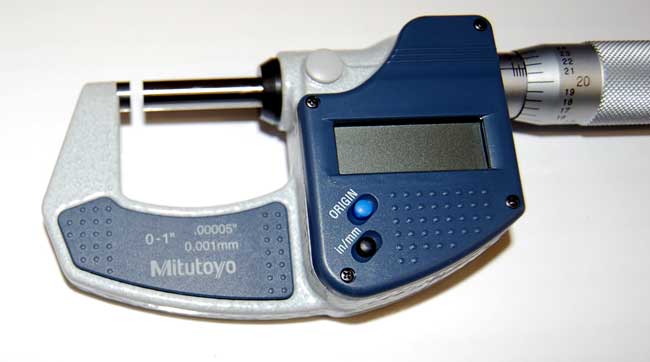

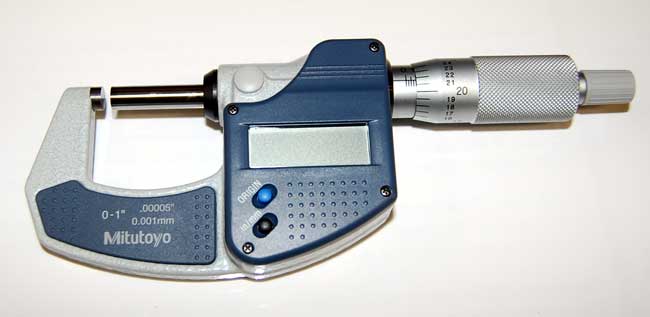

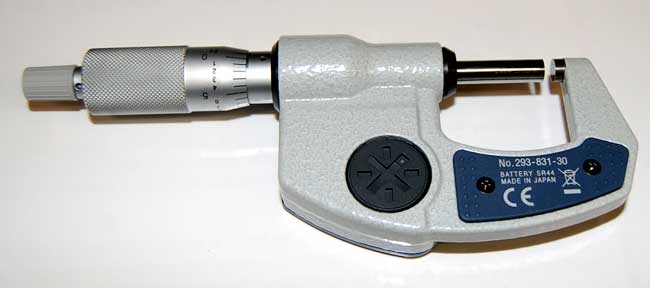

Made in Japan Brand New 0 to 1" x 0.0005" (Resolution) Series 293 MDC-Lite Digimatic Micrometer w/Ratchet Stop, comes with certification of inspection
FEATURES: Series 293- Provided only with a zero set and in / mm (inch / metric models only) keys.
- A ratchet stop or friction thimble for a constant measuring force.
- Measurement readout with large characters on the LCD screen.
- No spindle clamp. No data output.

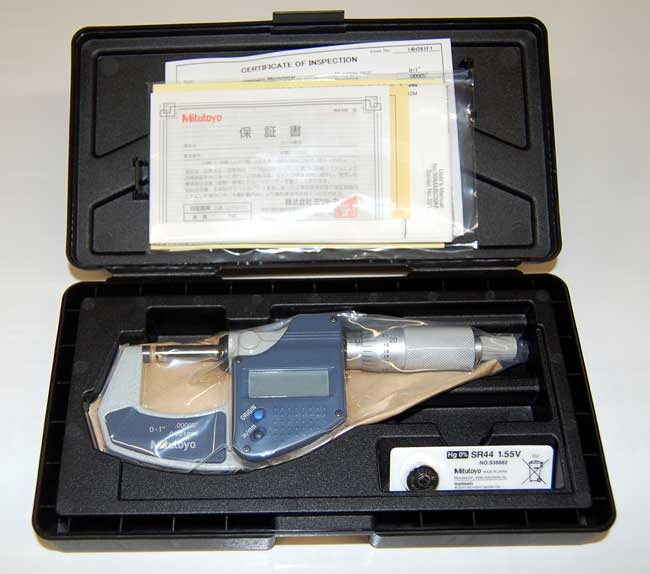

- Supplied in fitted plastic case.
Technical Data- Accuracy: +/- .0001".
- Resolution: .00005"/0.001mm or 0.001mm
- Flatness: .000012” / 0.3µm
- Parallelism: .00008” / 2µm
- Measuring faces: Carbide tipped
- Display: LCD
- Battery: SR44 (1 pc.), 938882
- Battery life: Approx. 1.2 years under normal use
Function- Origin-set, Automatic power on/off,
- inch/mm conversion (on inch/metric models only)
- Alarm: Low voltage, Counting value composition error
| Range | Resolution | Accuracy |
|---|
| 0-1" / 0-25.4mm | .00005" /0.001mm | +/- .0001" |
