Mitee-Bite Model BK2-VT-S+3 Machinable Single-Wedge OK-Vise Workholding Clamp

On sale: $170.00
In Stock.
Part Number:MB-47120
1 Pc. Mitee-Bite Products LLC Made in USA Brand New Model No. BK2-VT-S+3 Machinable Single-Wedge OK-Vise Workholding Clamp. Additional material is added to these machinable jaws. Single-wedge clamps are alsoavailable with extended jaws that can be machined to suit the geometry of the workpiece.

THREE-DIMENSIONAL MACHINING
Due to a low-profile design of OK-VISEĀ® Clamps, it is possible to execute flexible three-directional machining of workpieces with one fastening. This ability to machine a workpiece in three planes means improved accuracy.

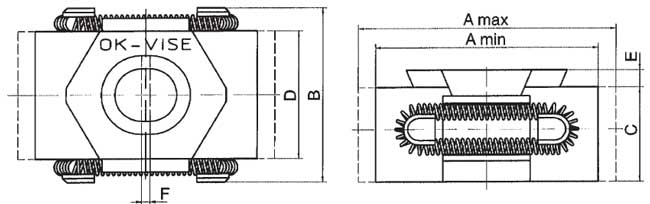

ModelA
Min.
A
Optimum
A
Max.
BCDEFMouting
Screw
(included)
Max.
Torque
(Ft/Lbs)
Pressing
Force of
Jaws (Lbs)
Hardness
of Jaws
HRC
BK2-VT-S+31.301.381.461.14.59.83.10.0605/16-18 x 3/4305,00030-34

These generic images shows how these OK-Vise Clamp can be use for application. You will only get described one clamp nothing else.
