1 Pc. Mitee-Bite Products LLC
Made in USA Brand New Model No. AK2-VT-SO Single-Wedge OK-Vise Workholding Clamp. Strong lateral clamping with a single wedge design. The single wedge clamps keep theworkpieces steadily in place, not allowing upward or downward movement.
THREE-DIMENSIONAL MACHINING
Due to a low-profile design of OK-VISE® Clamps, it is possible to execute flexible three-directional machining of workpieces with one fastening. This ability to machine a workpiece in three planes means improved accuracy.

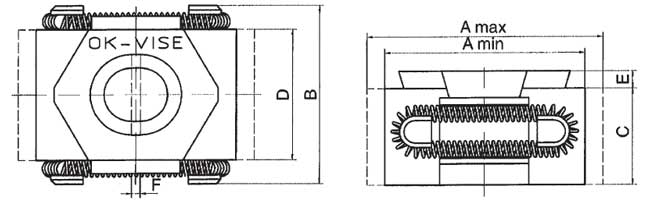

| Model | A
Min. | A
Optimum | A
Max. | B | C | D | E | F | Mouting
Screw
(included) | Max.
Torque
(Ft/Lbs) | Pressing
Force of
Jaws (Lbs) | Hardness
of Jaws
HRC |
|---|
| AK2-VT-SO | .79 | .90 | .98 | .86 | .43 | .59 | .16 | .060 | 10-32 x 3/4 | 7 | 2,000 | 48-52 |
These generic images shows how these OK-Vise Clamp can be use for application. You will only get described one clamp nothing else.
