1 Set (2 Pcs.) Mitee-Bite Products LLC

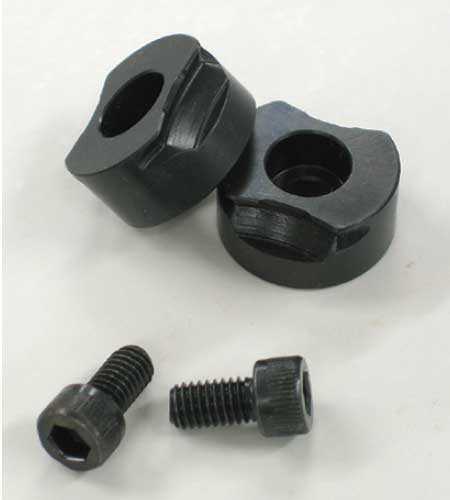

Made in USA Brand New 4" or 6" VersaGrip Vise Jaw w/Mounting Holes for CNC Mill Vises. Set includes 4 VersaGrips
VersaGrip™, as the name implies, offers the versatility of clamping standard vise work as well as providing a solution for difficult applications that would normally require fixturing or machining soft-jaws. By simply replacing your current jaws with the VersaGrip™ system you can securely hold odd shaped parts while machining at speeds and feeds you never thought possible.
This system can accommodate a wide range of part sizes as well as holding multiple parts in a single cycle. The hardened (52-54 RC) VersaGrip™ has penetrating teeth designed to bite into your workpiece preventing lateral and horizontal movement. These grips will hold flame cut parts, castings, even parts with a negative draft!

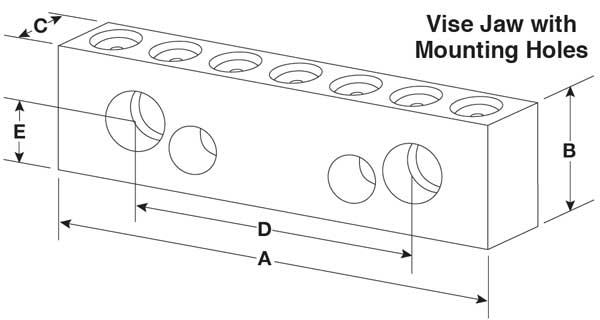

| Vise (metric) | A (metric) | B (metric) | C (metric) | D (metric) | E (metric) |
|---|
| 4"/6" (100 mm/150 mm) | 6.0 (150) | 1.88 (47.75) | 1.0 (25.4) | 2.5/3.88 (63.5/98.55) | .688/.94 (17.47/23.87) |

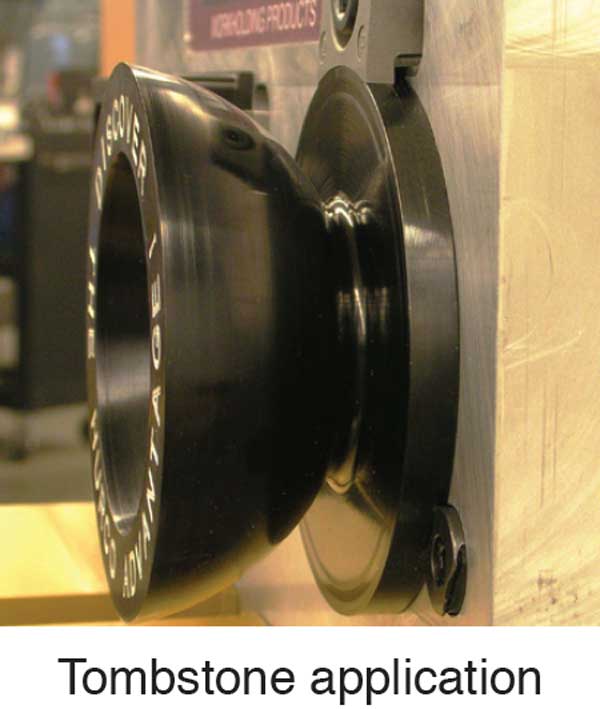

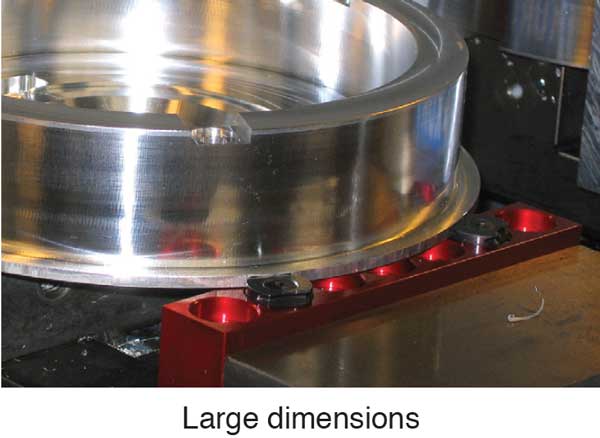

These generic images shows how these VersaGrip Vise Jaws can be use for application. You will only get described one set nothing else.
