12 Pcs. Mitee-Bite Products LLC
Made in USA Brand New 22mm (T-Slot) x M16 x 2.00 (Cam Screw) T-Slot Workholding Clamping Kit-Holding Force 26,680N
The original MITEE-BITE T-Slot Clamp combines our unique cam action clamping element with a T-nut.
- Locks in machine T-slot for low profile clamping
- Makes fast set-ups possible right on the machine table
- Brass hex follows contour of unusual shaped parts
- Packaged as complete kits
The Mitee-Bite Kit Contains:- 4 Pcs. Mitee-Bite T-Nuts
- 6 Pcs. Mitee-Bite Fixture Clamps
- 2 Pcs. Hex Keys

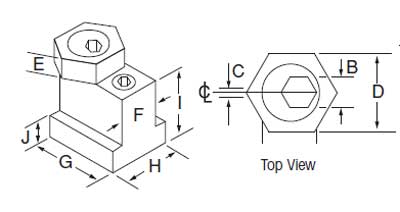

Part
Number | Cam
Screw | T-Slot
Size | B | C | D | E | F | G | H | I | J | Max.
Torque
(Ft/Lbs) | Max.
Torque
(Ft/Lbs) | Replacement |
|---|
Cam
Screw | Hex
Washer | T-Nut |
|---|
| 50656 | M16 x 2.00 | 22mm | 12mm | 2.54 | 30.15 | 12.7 | 22 | 44.3 | 34.9 | 41.3 | 12.5 | 135 | 26680 | 50373 | 10592 | 50722 |
These images shows how these T-Slot Clamp can be use for application. You will only get described clamps nothing else.
