Mitee-Bite Products LLC

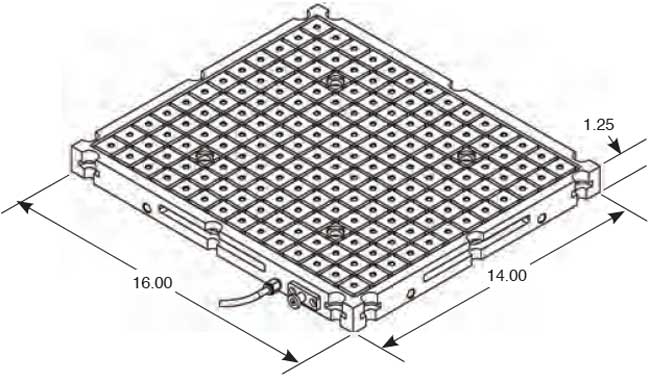

Made in USA Brand New 16.0" x 14.0" x 1.25" Multi-Power Vac Complete Vacuum System
System Includes:- Mitee-Bite Vac Generator with regulator/tubing/brass filter and push to connect fitting, Part # 46100
- Multi-Power Vac pallet without Vac Generator including mounting hardware and tubing, Part # 46200
Mitee-Bite is proud to introduce possibly the most universal multi-functional vacuum system in today's market. This system has several unique features to meet your vacuum workholding needs.
Features:- Can be powered with our Vacuum Generator (Shop Air) or Vacuum Pumps (available shortly)
- 14"x 16" with textured surface creating additional holding force through friction
- 4 Vacuum ports allowing user to hold 1-4 small parts or 1 large part (ports can be plugged)
- Grid plate tapped with M6 threads allowing multiple workholding solutions
- 6 over sized steel washers machined below the bottom surface allows unit to be used for grinding operations on a magnetic chuck
- Multiple Vacuum Generators can be used on each pallet if additional CFM is desired
- Multiple pallets can operate from (1) vacuum generator
- Coolant Trap may be necessary when using external vacuum source (Trap sold separately)
These generic images shows how this Vacuum System can be use for application. You will only get described one Complete Vacuum System nothing else.
