Nexus Cutting Tool A16T-PCLNR 16-4 1" x CNMG-431/432 Indexable Inserts Right Handed Coolant Boring Bar with 10 Pcs. Lamina Technologies CNMG 432-NN, Grade: LT 1000 Turning Inserts for CNC Lathes
Kit Includes: - 1 Pc. of Nexus Cutting Tools A16T-PCLNR-4 1"" x CNMG 431/432 Indexable Inserts Right Handed CNC Lathe Boring Bar
- 10 Pcs. of Lamina Technologies CNMG 431 (Radius - .016")-NN, Grade: LT 1000 Magia Turning Inserts
Product Information: - Comes in 1", 1-1/4", 1-1/2" Diameter Shanks
- Left & Right Hand Bar
- Takes CNxx-43x Inserts
- 95 Deg. Lead Angle
- 'P' Style Clamping and Coolant Through for Better Chip Evacuation
- Used for Boring & Facing
- Used Two-Sided Inserts
Grade: LT 1000 'Ultra-thick patented PVD coating - Recommended for Low Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron and even exotic materials like Inconel or Titanium based Alloys, all you need is one insert; the Lamina Magia insert!, .'

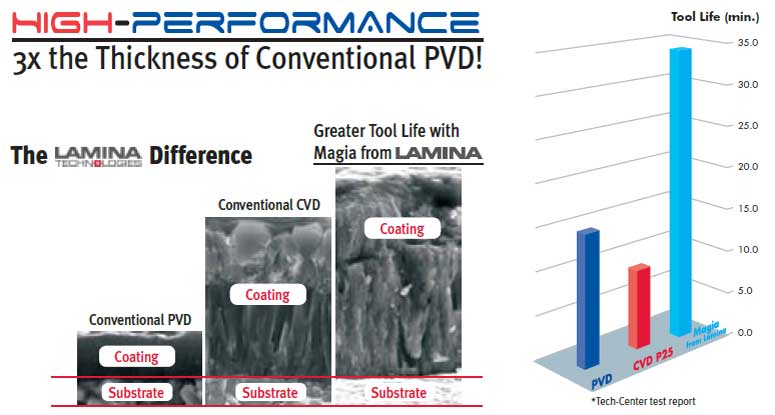

Lamina Technologies High-Performance
3 x the Thickness of Conventional PVD!
Features - Ultra-thick, patented PVD coating dramatically increases tool life
- Very low flank and plastic deformation minimize or eliminate offsets
- Advanced high-performance grade offers ultimate versatility
- Exceptional performance in High Temp Alloys
- Breakthroughs in honing and coating technologies
- Thickest PVD coating in the industry
- Freedom from the cycle of ""new grade"" announcements
- Facing, longitudinal turning, internal and external operations
- Fits standard cutters available in all markets
- Excellent toughness & wear resistance

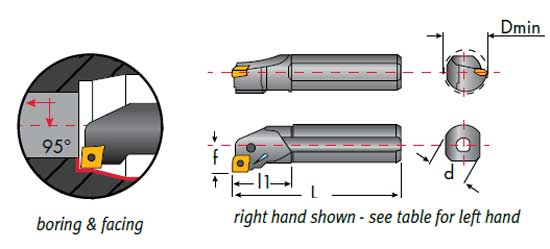

| Description | d | Dmin | L | l1 | f | Inserts |
|---|
| A16T-PCLNR-4 | 1.00 | 1.280 | 12.00 | 1.570 | 0.640 | CN__43_ |
Magia Turning & Boring Inserts
