Earth-Chain EET-1530W 12x6x 4.5" Electromagnetic Surface Grinding Chuck for EDM

Your Price: $1,625.00
In Stock.
Part Number:EC EET-1530W

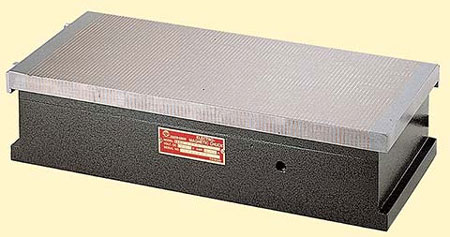

1 Pc. Earth-Chain/Techniks Brand New EET-1530W 12"(L) x 6"(W) x 3"(H) Surface Grinding Fine Pole Electromagentic Chuck

  • EDM-READY: fully submersible, brass sealed (More than 1000M? of insulation resistance)
  • Hard soldered top plate and solid bottom plate for maximum rigidity and accuracy
  • Low-profile design increases Z-axis stroke
  • Fine pole design provides best holding power on workpieces over 2mm thick
  • Strong magnetic force regulated by controller
  • EET-W chucks thicker bottom plate provides extremely strong magnetic workholding
  • Magnetic controller demagnetizes workpiece

Note: Please call me at 401-490-1141 for any questions you may have. Quantity discount available.

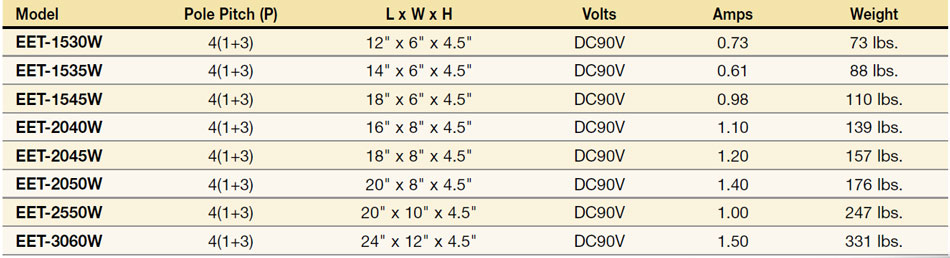

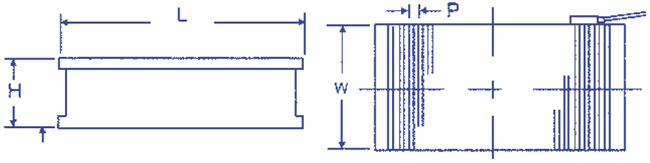

ModelPole Pitch (P)L x W x HVoltsAmps
EET-1530W4 (1+3)12" x 6" x 4.5"DC90V0.73

Other Available Surface Grinding - EET-W Electromagnetic Chucks
