Earth-Chain EDTW-1018 7" x 4" x 2" Surface Grinding Magnetic Chuck for EDM

Your Price: $1,015.00
In Stock.
Part Number:EC EDTW-1018

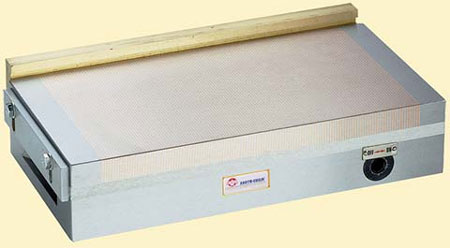

1 Pc. Earth-Chain/Techniks Brand New EDTW-1018 7"(L) x 4"(W) x 2"(H) Fine Pole Surface Grinding Permanent Magentic Chuck

  • EDM-READY: fully submersible, brass welded faceplate

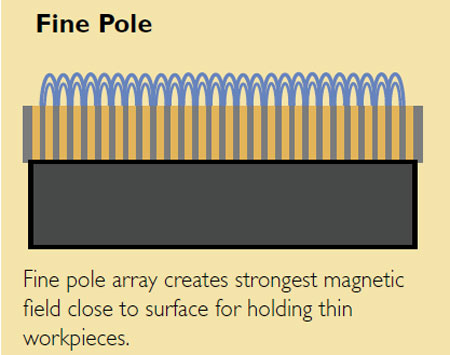

  • Fine pole design provides best holding power on workpieces over 2mm thick
  • EDTW chucks have up to 15 tons of holding force (150 lbs./inch2).
  • Most powerful “Rare Earth” Neodymium Iron Boron magnets are 5 times stronger than others
  • Low-profile design increases Z-axis stroke
  • Demagnetizer available upon request

Note: Please call me at401-490-1141 for any questions you may have. Quantity discount available.

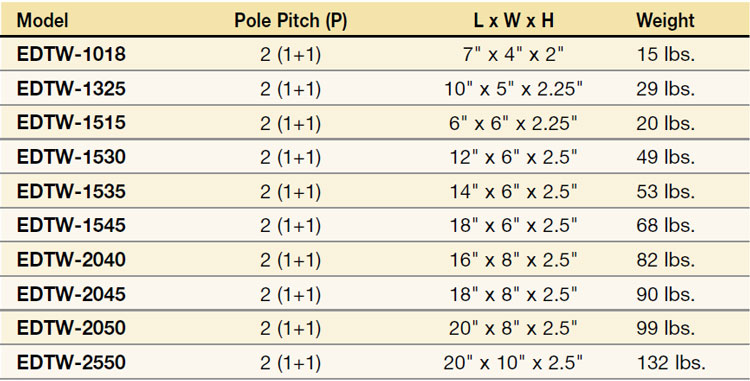

ModelPole Pitch (P)L x W x H
EDTW-10182(1+1)7" x 4" x 2"

Other Available Surface Grinding - EDTW Permanent Magnetic Chucks (Fine Pole Design)
