1 Pc. Earth-Chain Brand New
ECB-050 5"(L) x 3"(W) x 3"(H) MagVise ECB Permanent Magnetic Vise, Includes 2 machinable induction blocks, wrench, extension and socket, switch-connect socket assembly, 2 stop plates, 4 toe clamps.

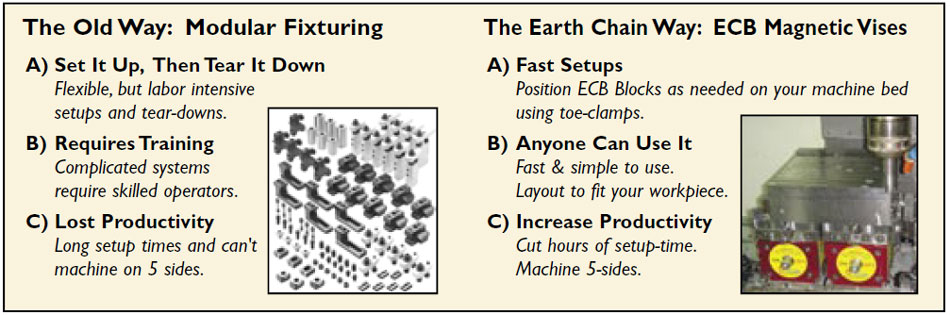

MagVISE Permanent Magnetic Vises slash setup times on horizontal or vertical CNC machine tools. They are used for all types of machining and boring operations on thin to thick workpieces.
No electricity is needed. Turn the magnetic vise "ON" and "OFF" with the turn of a wrench. Our magnetic vises easily integrate with pallet changing and tombstone systems for horizontal and vertical machining centers.
Magnetic work-holding provides very even holding of the workpiece, without dead spots, so chatter is reduced while tool life and surface finish are improved. Rough or uneven stock is no problem to hold thanks to spring loaded induction blocks that adjust to fit the workpiece.
- No electricity required
- Modular layout for custom setups
- Spring-loaded induction blocks hold warped stock
- Slash setup and part change over times
- 5-sided machining
- No workpiece deformation
- Improve machining performance

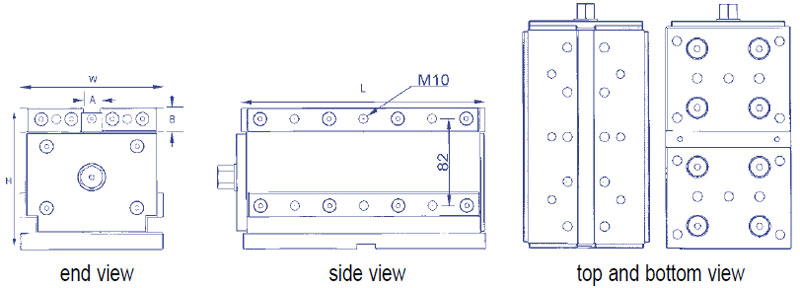

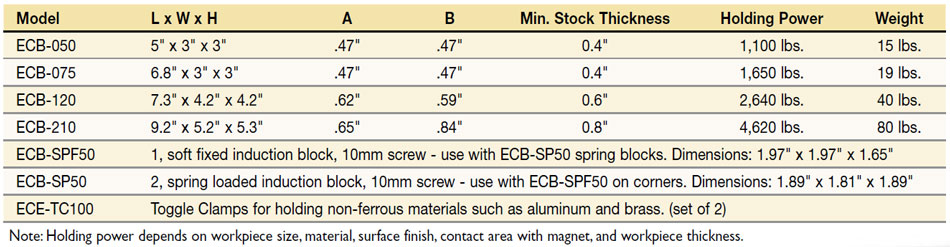

|Model||L x W x H||A||B||Min. Stock Thickness||Holding Power|
|ECB-050||5" x 3" x 3"||.47"||.47"||0.4"||1,100 lbs.|

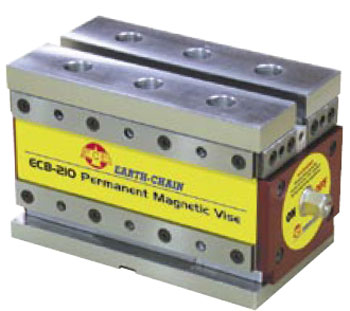

Other Available MagVISE ECB Permanent Magnetic Vises

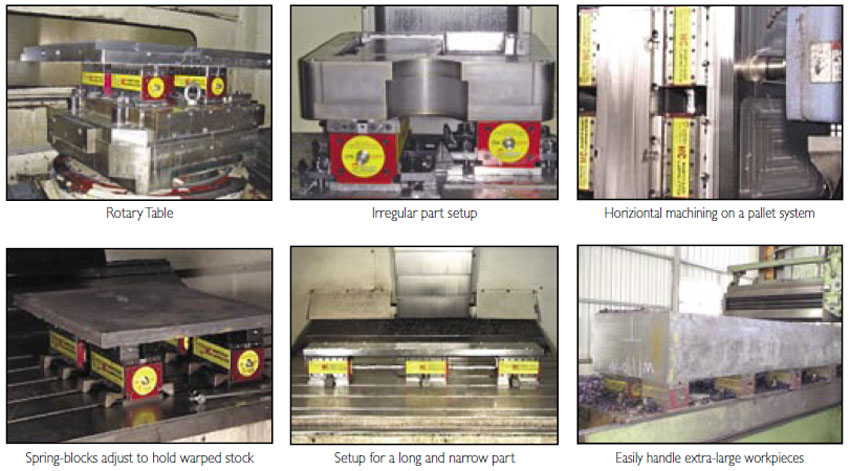

MagVISE ECB Application Examples
