1 Pc. Bison-Bial
Brand New 2.68" (Head Dia) x MT # 5 Automatic Hydraulic Face Driver (with RH pins) Live Center for Lathe
Features:- Ideal holding device for a modern, high production lathe
- Specially suited to repetition work
- Slim design
- All wearable parts hardened and ground
- No service required
- Spring loaded center
- Carrier teeth based on hydro-plastic medium adjust automatically to work piece
- Save set up time - One setting for machining all work pieces
- Heavier cuts without slippage
- Higher egocentricity and accuracy
- Most effective driving action even with irregular faces
- All drive plate components are hardened and ground for long life
- Complete OD machining in ONE clamping
- Accurate end location
- Load and unload automatically
- Eliminate preliminary machining of end faces
- Wide range clamping capability

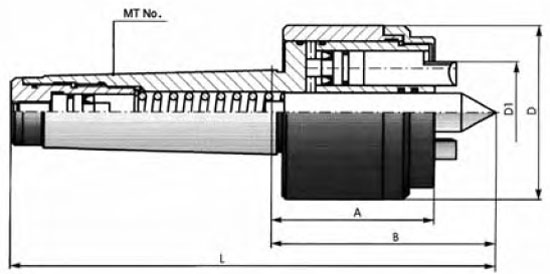

Morse
Taper | Part
Number | Head Dia
D | Clamping Range
D1 | Max. Wt of Workpiece
lbs | Max Arial Load
lbs | A | B | L |
|---|
| 5 | 7-590-051 | 2.68 | 1.18-1.97 | 121 | 2204 | 2.52 | 3.15 | 8.35 |
Bison-BIAL History
Bison-Bial, founded in 1948, is the largest manufacturer in Poland of technological tooling for manufacturing and has been a world leader in the machine tool accessory industry for decades. Bison produces a wide range of machine tool accessories used in the aerospace, energy, automotive, medical, defense and subcontract industries. Bison USA is headquartered in the northern suburbs of Cincinnati, Ohio
