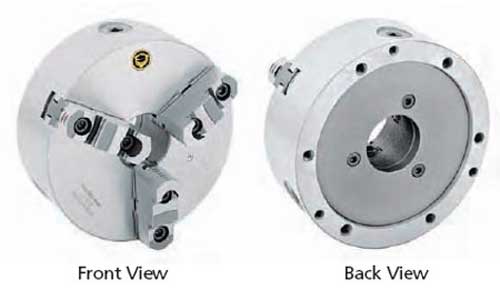

Bison-Bial 8" 3-Jaw Universal Self-Centering Semi-Steel Scroll Lathe Chuck

Your Price: $885.00
In Stock.
Part Number:7-800-0800
1 Pc. Bison-Bial Brand New 8" Universal Self-Centering 3-Jaw Semi Steel Body Scroll Lathe Chuck, w/Two-Piece Reversible Hard Jaws. This Chuck is rear mounting, plain back chuck that would need to be mounted on a backplate and then onto a lathe. Backplate is not include with this chuck. Please contact me for type of backplate you need & I will help you out.



    Each chuck is provided with:
  • 1 Set of hard master jaws
  • 1 Set of hard top reversible jaws
  • 1 Chuck wrench
  • 1 Set of mounting bolts
  • 2 Hex keys
  • 2 Eye bolts with 16” - 32” chucks
  • 3 Pinion design





    3-Jaw Universal Self-Centering Scroll Chucks

    Semi Steel Body, Plain Back, Adapter Plates Required

  • These chucks can be used on all types of lathes, and on different kinds of milling, drilling, and CNC attachments
  • Chucks come with either American Standard two-piece tongue and groove jaws, or two sets of hard solid OD and ID jaws
  • Plain Back and Direct Mount
  • Semi-steel body
  • Chuck body is made of high quality cast iron. All guideways and bearing surfaces are precisely machined
  • Scroll plate is drop forged of fine alloy steel, and carefully case hardened thread flanks are ground on both sides
  • The jaw’s teeth and guideways are hardened and fully ground on both sides
  • Pinions are hardened and ground

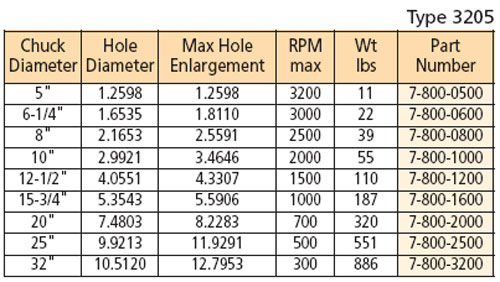

Check other sizes available



3-Jaw Universal Self-Centering Scroll Chuck/ Two-Pieces Jaws


Principal Dimension-Back Mounting

Chuck
Diametere
D
FEdCHhh1Adapter Mounting Bolts
Thread
M
LNo. of
Bolts
Part
Number
8"6.92916.29922.16540.15752.9531.7731.142M10 x 1.50.9867-897-108

Over 50 years of Quality European Manufacturing have made BISON the number one choice for Steel and Semi Steel Manual Lathe Chucks. Whether scroll, independent or collet, these chucks have been replacing their competitors for the last 30 years without sacrificing production.

The value of Bison Chucks is not just their exceptional price but also European craftsmanship, made to international specifications, accompanied by an ease of maintenance.

Offered with direct spindle mounting or special application back plates the easy installation of Bison is recognized and appreciated throughout the industry. All parts are manufactured and assembled in the same plant for consistent repeatability in material and workmanship. Spare parts and jaw options are readily available which eliminates excessive downtime for new product conversions and standard maintenance





Clamping Range for 3-Jaw Chucks w/ Two-Pieces Revesible Jaws

Chuck
Diametere
d1d2d3d4d5
8".157-3.542.83-6.145.24-7.871.97-5.124.13-7.48
