Bison 8" 3-Jaw (2-Pcs. Rev.) Self-Centering Scroll Lathe Chuck-Semi-Steel Body

Your Price: $725.00
In Stock.
Part Number:7-812-0800
1 Pc. Bison-Bial Brand New 8" Self-Centering 3-Jaw Semi Steel Body Scroll Lathe Chuck, w/Two-Piece Reversible Hard Jaws. This chuck mount through front of the chuck so they can be mounted on rotary tables or anything else that it is easier to mount from the frontBackplate is not include with this chuck. Please contact me for type of backplate you need & I will help you out.



    3-Jaw Self-Centering Plain Back Scroll Chucks

    Semi Steel Body, Plain Back, Front Mounting

  • Can be mounted directly on 3/6 slot rotary tables or on a base plate when the rotary table has 3/6 or 4/8 T-slots
  • Base plates are designed for use with all rotary tables and other devices where back mounting chucks cannot be used
  • These chucks can also be mounted to a rough machined backplate, but will require machining of bolt hole patterns and projections for finished assembly

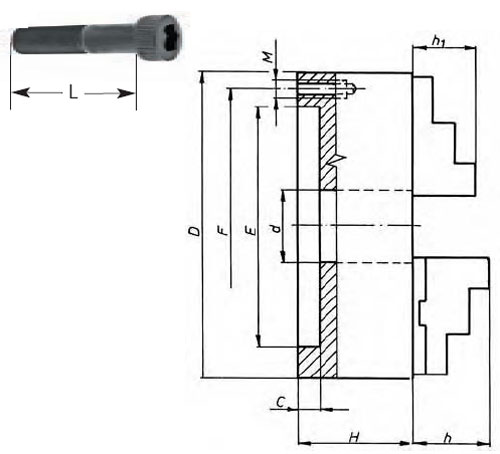

3-Jaw Self-Centering Scroll Chuck/ Two-Pieces Jaws


Semi Steel Body

Chuck
Diametere
D
Hole
Diametere
d
FE
H7
CHhWt
lbs
Mounting ScrewsPart
Number
Thread
G
No. of
Screws
Thread
M
8"2.16546.92916.29920.15752.9531.77232.03/8-16 x 3.156M127-812-0800

Over 50 years of Quality European Manufacturing have made BISON the number one choice for Steel and Semi Steel Manual Lathe Chucks. Whether scroll, independent or collet, these chucks have been replacing their competitors for the last 30 years without sacrificing production.

The value of Bison Chucks is not just their exceptional price but also European craftsmanship, made to international specifications, accompanied by an ease of maintenance.

Offered with direct spindle mounting or special application back plates the easy installation of Bison is recognized and appreciated throughout the industry. All parts are manufactured and assembled in the same plant for consistent repeatability in material and workmanship. Spare parts and jaw options are readily available which eliminates excessive downtime for new product conversions and standard maintenance
