Bison 5" 3-Jaw (2-Pcs. Rev.) Self-Centering Rotating Lathe Chuck w/MT#4 Shank

Your Price: $1,150.00
In Stock.
Part Number:7-865-0500
1 Pc. Bison-BIAL Brand New 5.0" 3-Jaw (2-Piece Reversible) Self-Centering Rotating Lathe Chuck w/ MT #4 Shank
    Features:
  • These precision rotating chucks are used in tailstock for jobs where centers cannot be used such as tube machining
  • Steel body construction, with hardened and ground scroll and pinions
  • Hardened and ground MT shank
  • Sealed ball bearings, lubrication through oiler
  • 3-Jaw lathe chucks can be easily removed and replaced with:
    4-Jaw scroll chucks (5" and 6" diameters)
    Face plates (6" diameter)
    Tapered heads (3" to 5" diameters)
    5C collet chucks (5" diameter)
  • 5" and 6" diameters with American Standard Tongue and Groove Jaws
    Standard Accessories for 5" and 6" Diameter Chucks:
  • 1 Set of two-piece reversible jaws (hard top jaws and hard master jaws)
  • 1 Wrench
  • 1 Hex key
    Optional Accessories:
  • 5" and 6" diameters: Soft top jaws
  • 3" thru 5" diameters: Special tapered heads
  • 6" diameter: Face plate and 5" diameter 5C collet chuck

Over 50 years of Quality European Manufacturing have made BISON the number one choice for Steel and Semi Steel Manual Lathe Chucks. Whether scroll, independent or collet, these chucks have been replacing their competitors for the last 30 years without sacrificing production.

The value of Bison Chucks is not just their exceptional price but also European craftsmanship, made to international specifications, accompanied by an ease of maintenance.

Offered with direct spindle mounting or special application back plates the easy installation of Bison is recognized and appreciated throughout the industry. All parts are manufactured and assembled in the same plant for consistent repeatability in material and workmanship. Spare parts and jaw options are readily available which eliminates excessive downtime for new product conversions and standard maintenance

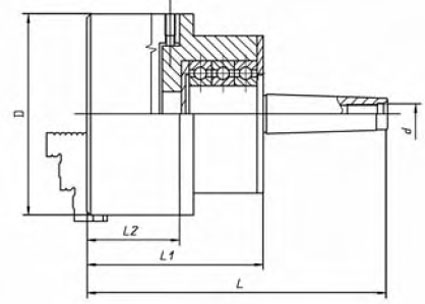

Chuck
Diameter
Part#MT
No.
Clamping RangeLL1L2RPM
Max
minmax
5.0"7-865-050040.124.929.634.782.03200
