12 Pcs. GS Sowa Tooling CAT 50 Mix & Match 25K RPM Balanced CNC Mill Tooling Kit w/Free Collets & 6" Caliper

On sale: $1,744.00

In Stock.

Free Shipping.

Part Number:GS C50-12PACK

Quantity

Description
Customer Reviews

12 Pcs. GS Sowa Tooling CAT 50 25,000 RPM Balanced ER Collet Chucks & End Mill Holders CNC Tooling Package with Free Collet Set & 6" Digital Caliper.

Kit Includes:

6 Pcs. GS Sowa Tooling CAT 50 25,000 RPM Balanced ER Collet Chucks (Choose from following table)

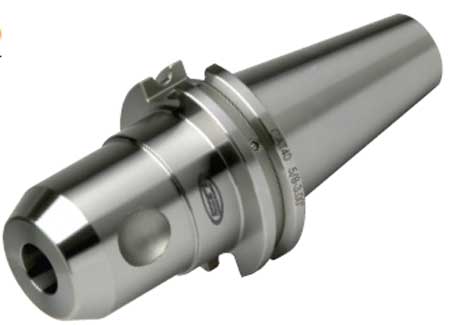

6 Pcs. GS Sowa Tooling CAT 50 25,000 RPM Balanced End Mill Holders(Choose from following table)
1 Set GS Sowa Tooling ER Collet Set - Free(Choose from following table)
1 Pc. Asimeto 6" IP67 Digital Caliper - Free

1. Select any 6 Collet Chucks

Part No.	Description
531-432	CAT 50 x ER16-4.00"
531-440	CAT 50 x ER20-4.00"
531-448	CAT 40 x ER25-4.00"
531-454	CAT 40 x ER32-4.00"

2. Select any 6 End Mill Holders

Part No.	Description
531-084	CAT 50 x 1/4"-2.50"
531-100	CAT 50 x 3/8"-2.50"
531-118	CAT 50 x 1/2"-2.63"
531-120	CAT 50 x 1/2"-4.00"
531-128	CAT 50 x 5/8"-3.00"
531-132	CAT 50 x 5/8"-6.00"
531-138	CAT 50 x 3/4"-3.00"
531-142	CAT 50 x 3/4"-6.00"
531-154	CAT 50 x 1"-4.00"
531-156	CAT 50 x 1"-6.00"
531-162	CAT 50 x 1-1/4"-4.00"

3. Choose a complimenty Collet Set (Free one set)

Part No.	Description
337-403	ER 16 x 11 Pcs. 1/16" to 3/8"
337-380	ER 16 x 10 Pcs. 0.5mm to 8mm
337-404	ER 20 x 15 Pcs. 1/16" to 1/2"
337-382	ER 20 x 12 Pcs. 1mm to 13mm
337-405	ER 25 x 13 Pcs. 1/8" to 5/8"
337-383	ER 25 x 15 Pcs. 1mm to 16mm
337-407	ER 32 x 17 Pcs. 1/8" to 3/4"
337-384	ER 32 x 18 Pcs. 2mm to 20mm

Features

DIN coolant thru the flange
Shank traverse ground to obtain optimum accuracy
100 % forged construction
Meets or exceeds ANSI specifications
.0002" or better ensures the best possible cutting tool life
Factory Balanced to save spindle life, tool life and increased productivity
AT3 or better taper accuracy
Each holder balanced with Hoffman Machine
Each holder comes with inspection lab report

The ER COLLET SYSTEM is the only Clamping System with the flexibility to allow and combine drilling, reaming,milling, and tapping utilizing the same chuck, without sacrificing accuracy or rigidity.

DIN coolant thru the flange
Factory Balanced to save spindle life, tool life and increased productivity
Threaded through holes for a back-up screw (tool stop)or coolant through when removed
Wrench not included
Each holder comes complete with certificate
40 Taper Balanced up to 30,000 RPM
50 Taper Balanced up to 25,000 RPM
